E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5G PoE Injector | Casing: | IP40 Aluminum Case |
|---|---|---|---|
| Input Power: | 12~48V DC | Data Transfer Rate: | 10/100/1000/2.5G/5G |
| PoE Standard: | IEEE 802.3af/at | Power Port: | 60W Max |

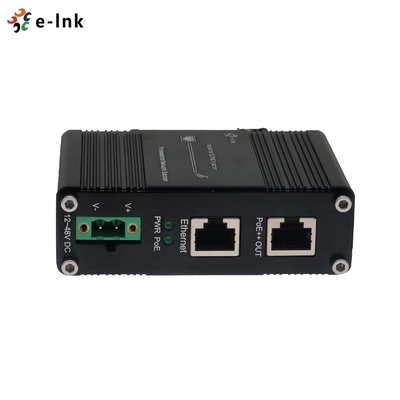

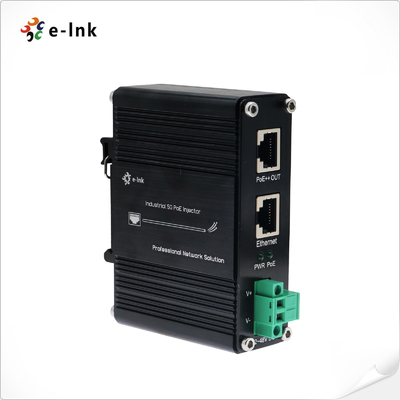

LNK-INJ501-60 is a Hardened 5G High Power 60W PoE Injector. It is specifically designed for connecting IEEE 802.3 af/at PoE devices, such as cameras and access points, to non PoE LAN switches. This can be achieved within a distance of 30m, making it a versatile and convenient solution.
The LNK-INJ501-60 also provides an integrated power solution, with a wide range voltage of 12~48V DC. This makes it suitable for high availability applications, ensuring a reliable and efficient power supply for your devices.
This device is capable of supporting various network speeds including 10Mbps, 100Mbps, 1000Mbps, 2.5Gbps, and 5Gbps using Base-TX technology.
This device includes 1 RJ45 port for Ethernet data input and another RJ45 port for Power Over Ethernet (PoE) output. This means that both data and power can be transmitted through a single cable.
This device is compliant with the IEEE802.3at standard for PoE+, allowing it to act as a Power Sourcing Equipment (PSE) to provide power to other PoE compatible devices.
To enhance troubleshooting and diagnostics, this device has extensive LED indicators that provide information about the PoE signal and power status.
This device is built to withstand extreme temperatures, with an operating range of -40°C to 80°C (-40°F to 176°F).
For convenience, this device can be mounted using either DIN-rail mounting or wall mounting, making it suitable for a variety of installation scenarios.
| Product Name | 5G PoE Injector |
|---|---|
|
Input Power |
12~48V DC (Terminal Block) |
| Output Voltage | 48V DC |
| PoE Standard |
IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet |
| Power Port | 60W Max |
|
Processing Type |
Half-duplex, Full-duplex |
|
Cabling |
10/100/1000/2.5G/5G Base-T: Cat7 or above |
|
Maximum Distance |
Cat7 UTP up to 30m |
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
| Casing | IP40 Aluminum Case |
| Installations |
DIN-Rail / Wall-mount |
The Power Over Ethernet Injector is carefully packaged to ensure safe shipping. Each unit is enclosed in a sturdy cardboard box with foam padding to protect it from any damage during transportation.
The packaging also includes the necessary installation instructions and any additional accessories, such as power cords or Ethernet cables.
For international shipping, the product is packaged according to the appropriate regulations and includes all necessary customs documentation.
Once packaged, the Power Over Ethernet Injector is shipped using a reliable and reputable carrier, such as UPS or FedEx, to ensure timely and secure delivery.
Upon arrival, the product should be inspected for any damage that may have occurred during shipping. In the rare case of damage, please contact our customer service team for assistance.
Thank you for choosing our Power Over Ethernet Injector. We hope it arrives safely and meets your expectations. If you have any further questions or concerns, please do not hesitate to contact us.
| Model | Description |
| LNK-INJ501-60 | 12~48VDC Power Input Industrial 5G 60W PoE Injector |
| Power Options | Power Supply is to be purchased separately |
