Outdoor PoE Injector Product Description:

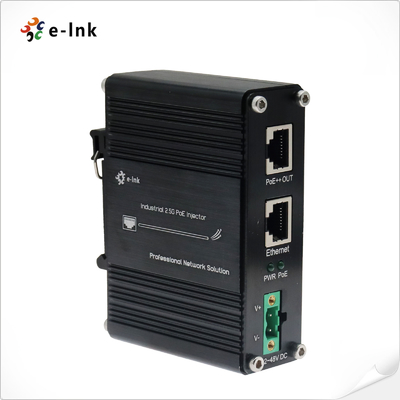

LNK-INJ401-30 is a hardened 2.5G PoE injector that is designed for connecting IEEE 802.3 af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch. With a maximum distance of 100 meters, this injector provides a simple and efficient solution for extending PoE connections.

Both the Ethernet port (to switch) and PoE Out port (to PoE device) support 10/100/1000/2.5G Base-T and comply with IEEE 802.3ab standards. The PoE Out port also meets the requirements of IEEE 802.3 at, ensuring reliable and high-speed data transmission.

LNK-INJ401-30 offers an integrated power solution, with a wide range voltage of 12~48VDC, to support high availability applications. Additionally, its hardened design allows it to operate in demanding environments, with a temperature range of -40°C to +75°C. It is also certified for IP30 protection, ensuring durability and reliability even in the harshest conditions.

PoE Injector Features:

1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

The device is equipped with two ports, one for data input and one for power over Ethernet output. This allows for efficient transmission of both data and power through the device.

Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

The device is compatible with IEEE802.3at standard for Power over Ethernet, allowing it to act as a power sourcing equipment for other devices.

Support 10/100/1000/2.5G Base-TX

The device supports various speeds, including 10, 100, 1000, and 2.5G Base-TX, for flexible and high-speed data transmission.

Extensive LED indicators for PoE diagnostics

The device comes with a range of LED indicators that help diagnose and troubleshoot any issues related to the Power over Ethernet function.

Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature range

The device is designed to operate in extreme temperatures, with a temperature range of -40°C to 80°C (-40°F to 176°F), making it suitable for use in harsh environments.

Din Rail PoE Injector Technical Parameters:

Ethernet

There are two standards for Power over Ethernet: IEEE802.3af and IEEE802.3at. The processing type is forward, which can be used in both half-duplex and full-duplex modes. The forward filter rate is 3,720,000pps (2.5Gbps).

The cabling for this Ethernet system is 10/100/1000/2.5G Base-T and is compatible with Cat6A or above cables. The maximum distance for Cat6A UTP is 100m. This system has 2x RJ45 connectors.

Environmental

The operating temperature for this Ethernet system ranges from -40°C to 80°C (-40°F to 176°F). The storage temperature ranges from -40°C to 85°C (-40°F to 185°F). The relative humidity should be between 5% and 95% non-condensing. The Mean Time Between Failures (MTBF) is greater than 200,000hrs.

Electrical and Mechanical

The input power range for this system is 12~48VDC (Terminal Block) and the power consumption is limited to 36W. This system also supports PoE (Power over Ethernet) with the IEEE802.3af/at standard. The port is RJ45 and the power pin assignment is 4/5(+) and 7/8(-). The maximum power per port is 30W in Alternative B Mode. The LED indicators show the power status and PoE status. The dimensions of the system are 95 x 70 x 30 mm and it weighs 0.25kg. The casing is made of aluminum and it can be mounted using DIN-Rail or wall-mount options.

Regulatory Approvals

This Ethernet system meets ISO9001 standards and is also approved by FCC part 15, Class A and EN55022:2006+A1:2007 Class A regulations. It also has surge protection for RJ45 (1KV), power (500V), and ESD (4KV/8KV).

PoE Injector Adapter Packing and Shipping:

At e-link, we strive to provide high quality and reliable products to our customers. In order to ensure that your Power Over Ethernet Injector arrives safely and in optimal condition, we have carefully designed our packaging and shipping process.

The PoE Injector will be packaged in a sturdy and durable box made from recyclable materials. The box will be sealed with tape to prevent any tampering during transit.

Inside the box, the Power Over Ethernet Injector will be placed in a foam insert to provide maximum protection against any impact or damage. The foam insert is custom-designed to fit the dimensions of the product, ensuring a snug and secure fit.

In addition, the product will be wrapped in a protective layer of bubble wrap to further safeguard it during shipping.

We have partnered with reliable and trusted shipping carriers to deliver your Power Over Ethernet Injector to your doorstep. Depending on your location, we may use UPS, FedEx, DHL, or other carriers to ensure timely and efficient delivery of your product.

All packages will be insured and will have a tracking number, which will be sent to you via email once your order has been shipped. This will allow you to track your package and know exactly when it will arrive.

For international orders, please note that you may be responsible for any customs fees or taxes imposed by your country's customs office.

Thank you for choosing Power Over Ethernet. We are committed to providing you with a seamless and hassle-free buying experience. If you have any questions or concerns about our packaging and shipping process, please don't hesitate to contact us.

Din Rail PoE Injector Ordering Information:
