8 Port 10/100T 802.3at PoE Switch with 2-Port 100BASE-FX SFP Unmanaged Ethernet Switch

Product Description:

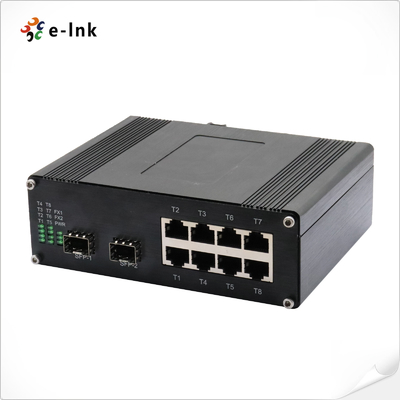

LNK-IMC208P Series is a robust and versatile switch that offers a powerful combination of features and performance. This PoE switch contains 8 ports that support 10/100Base-TX connections, as well as 2 ports that support 100Base-FX connections. It is specifically designed to be used in industrial settings, making it the perfect choice for handling critical network tasks with ease.
One of the key features of the LNK-IMC208P Series is its PoE+ function, which allows for Powered Devices to receive both power and data over the RJ-45 cable. This feature is essential for networking devices such as IP cameras and wireless access points, making it easier to deploy and manage these devices remotely.
The 100Base-FX ports on the switch are capable of supporting either 1 or 2 core Single-mode or Multi-mode fiber connections. This makes it a versatile choice for various networking environments, and ensures reliable and efficient data transmission across the network.
With its user-friendly design and reliable performance, the LNK-IMC208P Series is an excellent choice for integrating networks across remote locations. It offers a seamless and efficient solution for connecting various network devices, making it an essential tool for any industrial or commercial setting.

Features:

This device comes equipped with 8 10/100Base-TX ports and 2 100Base-FX ports. The 10/100Mbps RJ45 ports offer support for full or half-duplex modes, as well as auto-negotiation and Auto MDI/MDIX capabilities. Additionally, this device supports IEEE 802.3at PoE+ with a power output of 30W per port.
Users have the option to choose from SFP, SC, FC, or ST ports. To ensure reliable operation, this device also features redundant power inputs. It is designed for convenience with both wall-mount and DIN-Rail installation support.

Technical Parameters:

Ethernet is a widely used networking technology that allows devices to communicate with each other over a local area network (LAN). It is the most common type of wired network technology used in homes, businesses, and institutions.
Standards:
Ethernet follows various standards set by the Institute of Electrical and Electronic Engineers (IEEE), including:

• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX/FX
• IEEE802.3x Flow Control
• IEEE802.3az Energy Efficient Ethernet (EEE)
• IEEE802.3af Power over Ethernet
• IEEE802.3at Power over Ethernet


Forward & Filtering Rate:
The Ethernet switch has a forward and filtering rate of 14,880 packets per second for 10Mbps connections and 148,800 packets per second for 100Mbps connections.
Packet Buffer Memory:
The Ethernet switch has a packet buffer memory of 512K bits.
Processing Type:
The processing type used by the Ethernet switch is Store-and-Forward, which means that each packet is fully received and checked before being forwarded to its destination.
Address Table Size:
The Ethernet switch has an address table size of 1024 MAC addresses, which is used to store the MAC addresses of connected devices for efficient data transmission.

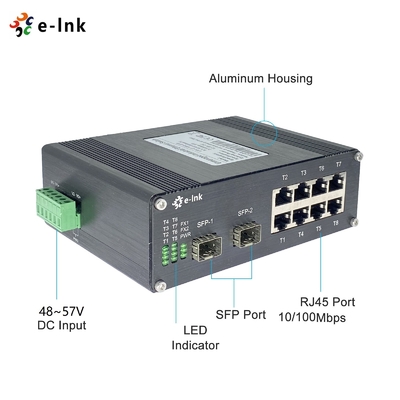

Interface:
The Ethernet switch has the following interface options:

• Connector: 8 x RJ45
• Optical Port: 2 x 100Base-FX (SFP, SC, FC, ST Optional)


Environmental:
The Ethernet switch is designed to function in various environmental conditions, such as:

• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing


MTBF:
The Ethernet switch has an expected Mean Time Between Failures (MTBF) of over 200,000 hours.
Electrical and Mechanical:

• Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
• Power Consumption: 253W Max. (PoE in use), 5W Max. (PoE not in use)
• PoE Standard: IEEE802.3af/at
• PoE Port: RJ45 Port 1 ~ Port 8
• Max. Power per Port: 30W Max per port (Alternative B Mode)
• Protection:
  • Power Input Overload: Automatic Resettable
  • Reverse Polarity: Present
• LED Indicators:
  • Power: Power1, Power2 Status
  • PoE: Per Port Status
  • Ethernet (Per Port): Link/Activity
  • Fiber: FX1, FX2
• Dimensions (WxDxH): 150 x 115 x 50 mm
• Weight: 0.6Kg
• Casing: Aluminum Case

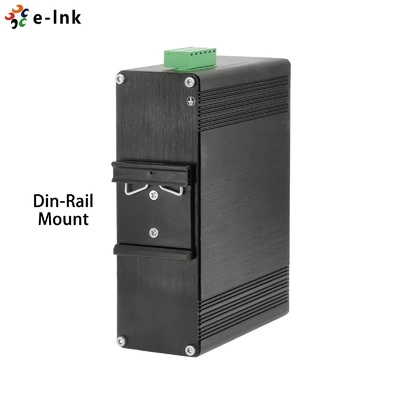

• Mounting Options: DIN-Rail / Wall-mount
