Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4 Port Unmanaged Ethernet Switch | Uplink Port: | 2 Port 100X SFP Uplink |
|---|---|---|---|
| Data Rate: | 10/100Mbps | PoE Standard: | IEEE 802.3af/at |
| Input Power: | 48~57V DC | Installation: | DIN-Rail / Wall-mount |
| Highlight: | Industrial 802.3 at PoE Switch,4 Port Gigabit 802.3 at PoE Switch,2 1000X SFP DIN-Rail PoE Switch |
||

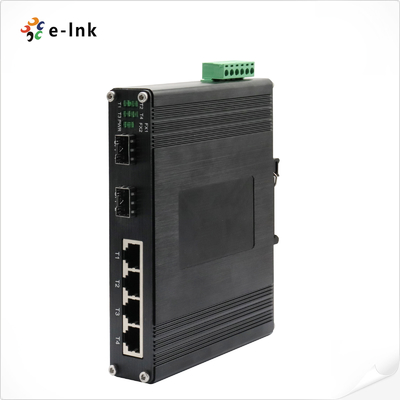

The LNK-IMC204P is a 6-port switch featuring 4 ports of 10/100Base-TX and 2 ports of 100Base-FX. This hardened switch is designed to withstand harsh environments. One of its key features is the PoE+ function, which allows for the transmission of both power and data over the RJ-45 cable to connected devices. This switch is compatible with a variety of Powered Devices.
The 1000Base-FX capability of the LNK-IMC204P supports both single-mode and multi-mode fiber, with options for 1 or 2 cores. This flexibility enables easy integration into a wide range of network setups. Whether connecting IP cameras or wireless access points, this switch is a great choice for establishing reliable connections between remote locations.
The device is equipped with 4 10/100Base-TX + 2 100Base-FX ports, allowing for a maximum data transfer rate of 10/100Mbps. These ports feature RJ45 connectors that support both full and half-duplex communication, as well as auto-negotiation and auto MDI/MDIX functionality.
The device also supports store-and-forward transmission, ensuring efficient and reliable data transfer. It is compliant with IEEE 802.3at PoE+ standards, providing up to 30W of power per port. Users have the option to choose between SFP, SC, FC, or ST connectors for their fiber connections.
For added reliability, the device has redundant power inputs. It can be easily mounted on a wall or DIN-rail to suit different installation needs. Its operating temperature range of -40°C to 80°C (-40°F to 176°F) makes it suitable for use in various environments.
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3x Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Cabling: | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5 UTP up to 100m |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 2 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC , Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 132W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |

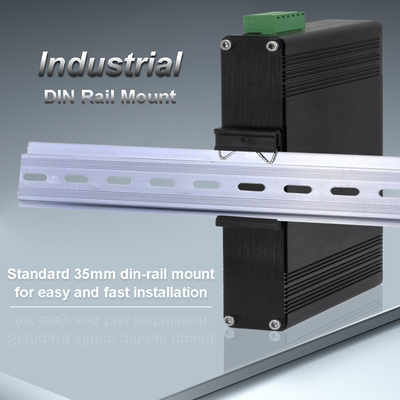

| Mounting Options: | DIN-Rail / Wall-mount |
The LNK-IMC204P is suitable for a wide range of industrial applications, including but not limited to:
Product Name: Industrial Ethernet POE Switch
Packaging and Shipping:
Thank you for choosing our Industrial Ethernet POE Switch. We strive to provide high-quality products and efficient shipping services for our customers. If you have any questions or concerns, please don't hesitate to contact us.
| Model | Description |
| LNK-IMC204P | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC204P-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC204PS-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC204PF-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC204P-SFP | Industrial 4-port 10/100BASE-T (4-port PoE+) + 2-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
