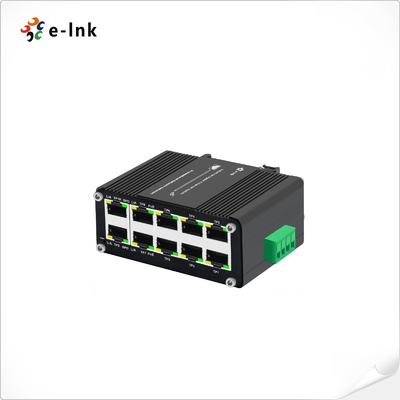

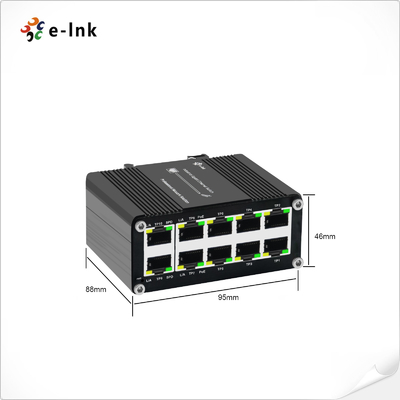

Mini 10 Port Gigabit Switch 8 Port 10/100/1000T 30W PoE To 2-Port RJ45 Uplink Din Rail Mounting

PoE Switch Description:

LNK-IMC010GP is a mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch specially designed to fit in narrow environments. It has high performance even in harsh industrial environments with its 240-watt 802.3at PoE+ output capability and wire-speed Gigabit performance.

The device has eight 10/100/1000BASE-T ports with IEEE 802.3at PoE+ and two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection. Moreover, the LNK-IMC010GP features a power system that supports 48~57V DC power input for power redundancy and operational flexibility, with a total power budget of up to 240 watts for different PoE applications.

With its IP40 industrial metal case, the LNK-IMC010GP provides immunity against electromagnetic interference and heavy electrical surges. Furthermore, its ventilated construction enables it to be noiseless and allows it to function in a wide operational temperature range from -40 to 80 degrees C.

Gigabit Switch Features:

The 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports provide ten ports for connection to a wide variety of devices.

With up to 8 ports of IEEE 802.3af/at devices powered, the power budget can reach as much as 240-watt of PoE, while 48~57V DC redundant power with reverse polarity protection is also supported.

Moreover, the device is compliant with the IEEE 802.3az Energy Efficient Ethernet (EEE) and supports 802.3x Flow Control. It can be mounted to a DIN-Rail yet still maintain a robust design with dustproof and close-protection at IP40 standards.

Finally, housed in a rugged high-strength metal case, it’s industry-standard for any workspace.

Outdoor Gigabit Switch Technical Parameters:

PoE Switch Applications:

Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

• 24/7 technical support
• On-site troubleshooting and repairs
• Remote technical support
• Firmware updates and upgrades
• Hardware replacement
• Maintenance and preventive care
• Customized system integration and optimization services

Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

• Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
• The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
• The box is then sealed and shipped to the customer via a reliable shipping carrier.

Mini Gigabit PoE Switch Ordering Information:
