Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial 5 Port PoE Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| PoE Port: | 4 Port 10/100/1000T 802.3at | Uplink Port: | 1 Port 10/100/1000T RJ45 Uplink |
| Mounting Options: | DIN-Rail / Wall-mount | Temperature Range: | -40℃ To 75℃ |
| Highlight: | 4 Port 802.3 at PoE Switch,DIN-Rail 802.3 at PoE Switch |
||

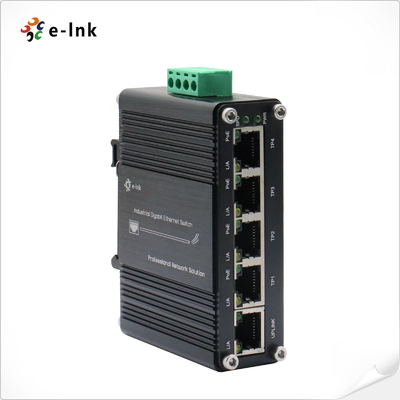

LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This robust and reliable unmanaged industrial Ethernet switch is designed to meet the most rigorous industrial standards. It operates flawlessly in high vibration and shock environments, as well as in a range of temperature conditions. Furthermore, it has obtained CE and FCC certification, and has passed the 100% burning test, to ensure its ability to meet the needs of harsh industrial applications. As an economical choice of industrial Ethernet connection, this is an excellent selection.
While this switch requires no configuration for setup, it still offers all the features needed for reliable industrial connectivity. This includes support for 802.3at PoE, four 10/100/1000BASE-T Ethernet Ports, one 10/100/1000T Ethernet Port, wide temperature range, and 12~48VDC wide range power input. And best of all, these features are packed into a highly compact form factor, giving it the ability to fit into established and limited spaces.
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

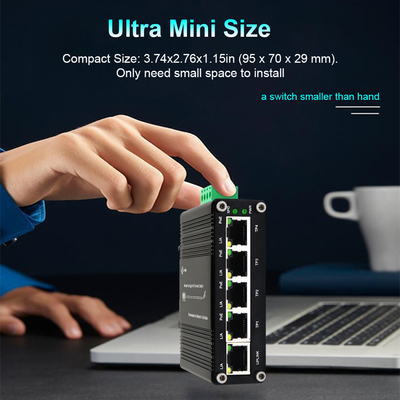

| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet POE Switch technical support and services include:
Industrial Ethernet POE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
| Model | Description |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |

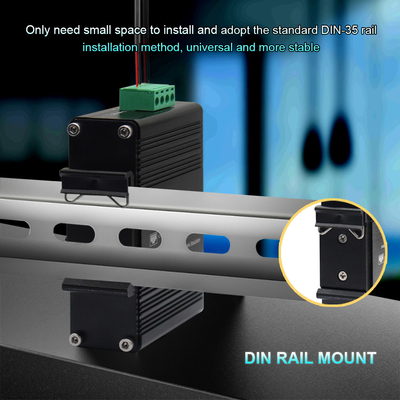

| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
