Wholesale Mini 4k HDMI 2.0 KVM USB Over Fiber Extender LC 300 Meters Transmitter Receiver

Name: Wholesale Mini 4k HDMI 2.0 KVM USB Over Fiber Extender LC 300 Meters Transmitter Receiver
Brand: E-link
SKU: LNK-109KVM
Rating: 4.7 (107 reviews)

Large Image : Wholesale Mini 4k HDMI 2.0 KVM USB Over Fiber Extender LC 300 Meters Transmitter Receiver

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-109KVM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Fiber Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000 pair per month

Contact Now

Detailed Product Description

Product Name:	HDMI Fiber Extender	Cable Type:	Multi Mode LC Fiber
HDMI Version:	HDMI 2.0	HDCP Version:	HDCP 2.2
Video Resolution:	Up To 4K 60Hz	Data Rate:	Up To 18Gbps
Transmission Distance:	Up To 300 Meters	Storage Temperature:	-20-60℃
Highlight:	lc 4k fiber optic hdmi extender , mini 4k fiber optic hdmi extender , 300 meters 4k hdmi optical extender

HDMI Extender Description:

LNK-109KVM Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender

This device consists of a Transmitter and a Receiver unit, allowing you to extend HDMI 2.0 and USB HID signals for up to 300 metres (984 feet) via LC OM4 MM Fibre Optic Cabling. It offers picture quality up to 4K 60Hz UHD with support for the 4:4:4 chroma sampling.

At the Transmitter section, there is a distribution chip that takes one HDMI input and reflect the signal via two outputs. The first output utilises Wavelength-division multiplexing technology to convert four high-speed differential signals into optical fibre outputs, which is then driven by a photoelectric conversion engine. The other output is used for local output.

At the Receiver end, it will restore the signal input from optical fibre into HDMI output.

HDMI Fiber Converter Features:

This high-end product transmits 4K HDMI2.0 video signals up to 300 meters over OM4 Multi-Mode Fiber optic (MMF) cables. It allows uncompressed audio & video transmission up to a resolution of 4K (60Hz 4:4:4). It supports both keyboard and mouse signal transmission with a combination of local and remote modules.

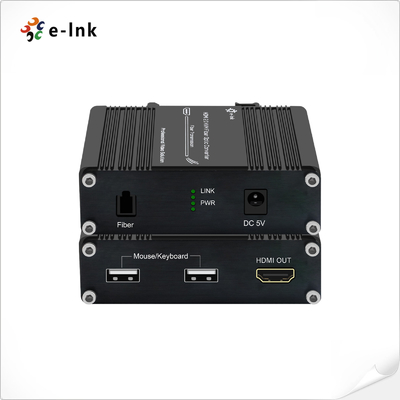

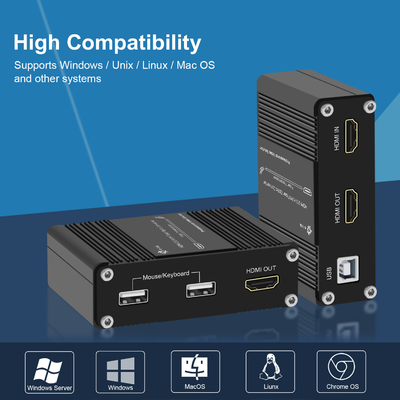

Local module includes HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and power connector (DC-jack-female). Remote unit, on the other hand, provides HDMI output at the display end, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and power connector (DC-jack-female). Additionally this device allows local loop output.

HDMI Fiber Extender Technical Parameters:

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Data speed	18Gbps(6 Gbps/CH)
	Resolution range	4K@60Hz/4K@30Hz/1080p/720p
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	LC connector
	Fiber type	OM4 Multimode
	Wavelength	850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM4 Multimode fiber: 300M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	TX:＜1.5W; RX:＜1W
	Temperature	Operating: 0℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	93 x 70 x 28(mm)
	Gross weight	0.25KG
	The warranty	1-year free warranty

HDMI Fiber Converter Applications:

Wholesale Mini 4k HDMI 2.0 KVM USB Over Fiber Extender LC 300 Meters Transmitter Receiver 0

Support and Services:

HDMI Over Fiber Optic Extender Technical Support and Service

We provide technical support and service for our HDMI Over Fiber Optic Extender. Our service includes:

Providing product information and technical specifications.
Assisting in product installation and configuration.
Troubleshooting product issues.
Answering questions about product features and compatibility.
Assisting with product repairs and replacements.
Providing software and firmware updates.

If you have any questions or need assistance, please contact us at support@example.com.

Packing and Shipping:

Packaging and Shipping

HDMI Over Fiber Extender are packaged in a sturdy cardboard box that includes the extender unit, a power adapter, and all necessary cabling and connectors. The extender units are padded with foam to prevent damage during shipping. All packages are shipped via a reliable shipping service with tracking information.
