Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial 16 Port POE Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Copper Port: | 16 Port 10/100/1000T RJ45 | Optical Port: | 4-Port 1000X SFP |
| PoE Budget: | Up To 480-watt PoE Budget | RS485 Signals: | Data+, Data-, GND |
| Dimensions (WxDxH): | 155 X 115 X 85 Mm | Weight: | 1.2KG |
| Highlight: | industrial poe switch ieee 802.3 at,16 port poe switch ieee 802.3 at,802.3at din rail managed ethernet switch |
||

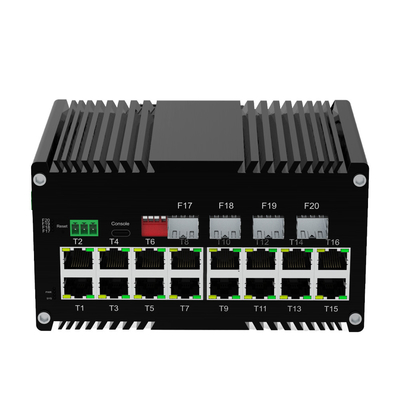

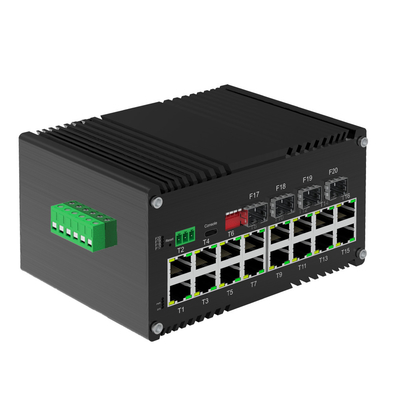

Introduing the Eth-DIMC2416MP Series L2+ managed Ethernet switch. This reliable switch offers 16 Gigabit Ethernet ports and 4 SFP fiber ports. The TP (RJ45) supports speeds of up to 10/100/1000Base-T(X), having both full/half duplex mode as well as auto MDI/MDI-X connection. Furthermore, the 1000Base-X support 1 or 2 core which can use both single or multi-mode fiber.
The product is quite easy to use, making it the perfect choice for integration of networks such as IP Cameras and Wireless Access Points between remote locations and more. With its reliable design and ease of use, this product is a must-have for anyone serious about their networking.
This device supports 16x 10/100/1000Base-T ports and 4x 1000Base-X SFP ports. The 10/100/1000Mbps RJ45 port supports Full/Half-duplex, Auto-negotiation, and Auto MDI/MDIX. It also complies with the IEEE 802.3af/at standards. With the DIP switch, users can make use of the one-key VLAN, one-key Ring Management, PoE Reset, and poE Network with a reach of up to 250m.
Moreover, this device supports connecting USB-C port for easy management where it eliminates the need to access the RS232 serial port. It is a Jumbo Frame with 9K bytes, as well as supporting the IEEE 802.3az Energy Efficient Ethernet (EEE). It is equipped with a IP40 Aluminum Case, and is also able to support DIN-Rail and wall mounting installation.
| Forward & Filtering Rate |
14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) |
|||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length | 10K Bytes Jumbo Frame | |||
| Address Table Size | 8K MAC Addresses | |||
| Standard |
IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
|||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 480-watt PoE budget | |||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max.(PoE in Use<480W) | |||
| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled | |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled | |
| Dimensions (WxDxH): | 155 x 115 x 85 mm | |||
| Weight: | 1.2Kg | |||
| Casing: | Aluminum Case | |||

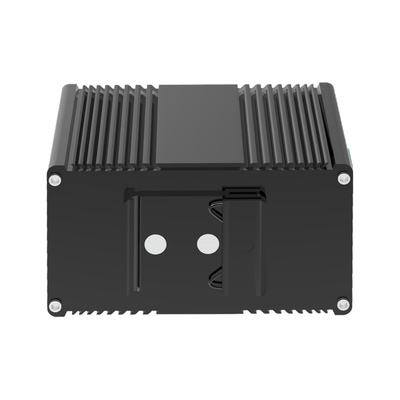

| Mounting Options: | DIN-Rail mount | |||
| Redundancy Protocols | Support STP/RSTP/MSTP/ERPSv2, Link Aggregation | |||
| PoE Management |
Total power limit of PoE power supply PoE output power allocation |
|||
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping | |||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT | |||
Industrial Ethernet POE Switch technical support and service includes:
The Industrial Ethernet POE Switch is securely packaged and shipped in an appropriate box to ensure its safe arrival at its destination. All components are inspected before shipping to ensure that the product is properly and securely packed.
The package includes the following items:
It can be delivered by ground, air or sea, depending on customer's needs. For international orders, the product is shipped via international courier.
| Model | Description |
| ETH-DIMC2416MP | Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed.
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| Power Options | ► Power Supply is to be purchased separately. |
