Industrial Unmanaged Ethernet Switch 3 Port 10/100/1000t + 1 Port 1000x Sc Fiber 20km

Name: Industrial Unmanaged Ethernet Switch 3 Port 10/100/1000t + 1 Port 1000x Sc Fiber 20km
Brand: E-link
SKU: LNK-IMC103G-20
Rating: 5 (176 reviews)

Large Image : Industrial Unmanaged Ethernet Switch 3 Port 10/100/1000t + 1 Port 1000x Sc Fiber 20km

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-IMC103G-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Industrial Fiber Ethernet Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Product Nmae:	Industrial Unmanaged 3 Port Ethernet Switch	Fiber Mode:	Single Mode Dual Fiber
Optical Port:	1-Port 1000X SC Fiber	Connector:	3-Port 10/100/1000T RJ45
Input Power:	12~48VDC Redundant Power	Power Consumption:	5W Max
Transmission Distance:	20KM	Weight:	0.25KG
Mounting Options:	DIN-Rail / Wall-mount	Warranty:	5 Years
High Light:	5w industrial unmanaged poe switch , ethernet industrial unmanaged poe switch , 5w 4 port industrial poe switch

Industrial Unmanaged Ethernet Switch 3-Port 10/100/1000T + 1-Port 1000X SC Fiber 20KM

Din Rail Fiber Ethernet Switch Advantages

► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case

3 Port Gigabit Ethernet Switch Technical Indexes

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Industrial Unmanaged 3 Port Ethernet Switch Overview

LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

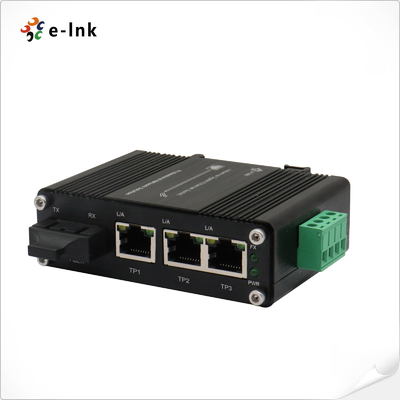

Industrial Unmanaged Ethernet Switch 3 Port 10/100/1000t + 1 Port 1000x Sc Fiber 20km 0

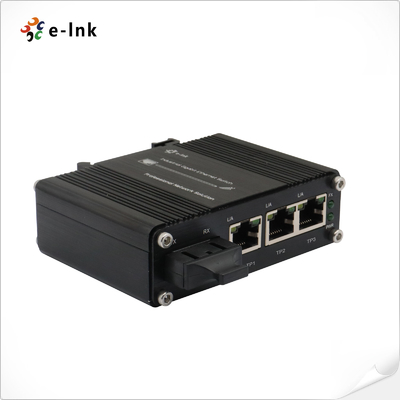

Industrial Unmanaged Ethernet Switch 3 Port 10/100/1000t + 1 Port 1000x Sc Fiber 20km 1

Outdoor 3 Port 10/100/1000Mbps Ethernet Switch Ordering Information

Model	Description
LNK-IMC103G	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103G-20	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GS-20A	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GS-20B	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km

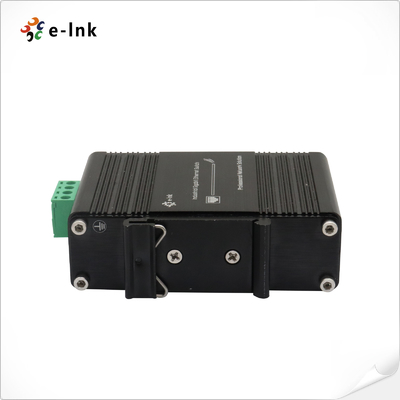

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
