E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor 3 Port Gigabit PoE Switch | Input Power: | 12~48V DC With Power Booster Function |
|---|---|---|---|
| Optical Port: | 1 Port SFP 1000Base-X Or 100Base-FX | Connector: | 3 Port RJ45 With 802.3at PoE Injector Function |
| Fiber Mode: | Single-mode / Multi-mode | Power Pin Assignment: | 4/5(+), 7/8(-) |
| Power Consumption: | 95W | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.3Kg | Operating Temperature: | -40°C To 75°C |
| Highlight: | 3port din rail gigabit ethernet switch,802.3at din rail gigabit ethernet switch,30w din rail mounted poe switch |
||

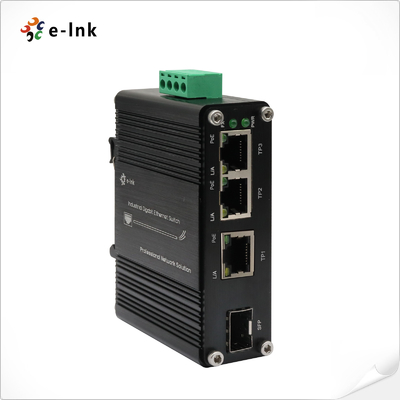

Outdoor Industrial 3 Port Gigabit 30W 802.3at PoE Switch With 1 Port 100/1000X SFP Fiber
Fiber Ethernet Switch Advantages
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

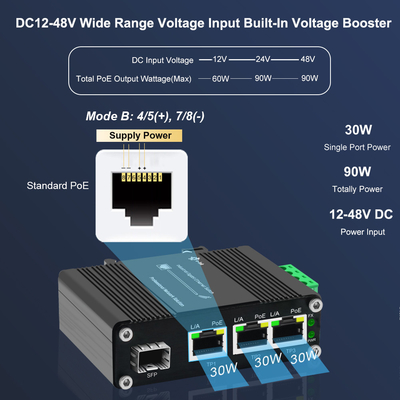

► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)
► Supports Full/Half-duplex, Auto-negotiation
3 Port 802.3at PoE Switch Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
4 Mbit |
|
Switch Fabric: |
12Gbps |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Ethernet LINK Status |
|
FX: |
Fiber LINK Status |
|
PoE: |
PoE Status |
PoE Ethernet Switch 802.3at Overview

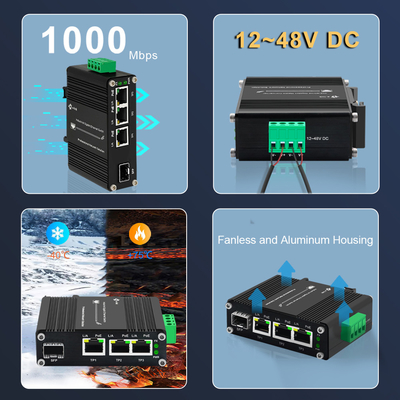

LNK-IMC103GP-SFP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Outdoor 3 Port 10/100/1000M 802.3at PoE Switch Ordering Information
|
Model |
Description |
|
LNK-IMC103GP-SFP |
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 12~48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
