Product Details:
Payment & Shipping Terms:
|
| Product Name: | 802.3bt PoE Media Converter | Optical Port: | 1 Port SC 1000Base-X |
|---|---|---|---|
| Data Rate: | 10/100/1000Mbps | POE: | IEEE 802.3af/at/bt |
| Input Power: | 48~57V DC Redundant Power | Output Power: | 48V DC |
| Power Consumption: | 185W Max | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Installtions: | DIN-Rail (default) & Wall-mount | ||
| Highlight: | poe fiber media converter 90w,802.3bt poe fiber media converter,90w fiber to ethernet converter poe |
||

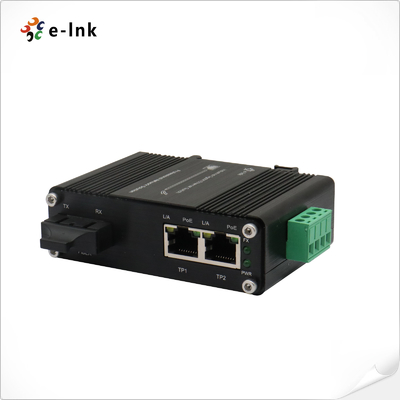

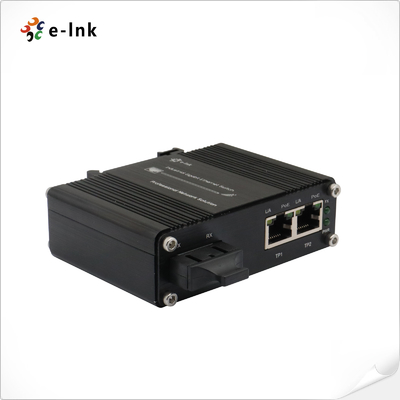

2 Port 1000Mbps 90W 802.3bt PoE Ethernet Media Converter With 1-Port 100/1000X SC Fiber
Fiber Ethernet Media Converter 2-port PoE Advantages
► Dual port 10/100/1000BASE-T-RJ45 with automatic MDI/MDI-X function
► 1 Port 1000Base X SC
► Supports IEEE802.3af/at PoE (30W) or IEEE802.3bt PoE++(90W)
► Supports full duplex/half duplex, automatic negotiation
► Supports DIN rail and wall mounted installation
802.3bt PoE Media Converter Technical Indexes
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
IEEE802.3bt Power over Ethernet |
|
|
Processing Type |
Store-and-Forward |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
LED Indicators |
|
|
PWR |
Power Status |
|
L/A |
Data LINK Status |
|
POE |
PoE Status |
|
100M/1000M |
Fiber LINK Status |
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail / Wall-mount |
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
Fiber Media Converter 802.3bt Overview
The LNK-IMC1200GP90 Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200GP90 Series is easy to mount on a DIN rail or in distribution boxes.
Gigabit PoE Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC1200GP90 |
Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m |
|
LNK-IMC1200GP90-20 |
Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1200GP90S-20 |
Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48V DC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
