Product Details:
Payment & Shipping Terms:
|
| Product Name: | 802.3bt PoE Media Converter | Connector Port: | 1 Port RJ45 To 1 Port SFP |
|---|---|---|---|
| PoE Standard: | IEEE 802.3af/at/bt Power Over Ethernet | Data Rate: | 10/100/1000Mbps |
| Power Input: | 48~57V DC 4-pin Terminal Block | Power Consumption: | 95W Max |
| Installtions: | DIN Rail & Wall-mount | Casing: | IP40 Aluminum Case |
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Relative Humidity: | 5% To 95% Non-condensing |
| Highlight: | din rail poe fiber media converter,90watt poe fiber media converter,fiber to ethernet converter poe 802.3bt |
||
Din Rail PoE Media Converter 1 Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt 90W
Din Rail Media Converter Advantages
► 1 port 10/100/1000BASE-T RJ45 with automatic MDI/MDI-X function
► 1 SFP port, 100Base-FX or 1000Base-X dual mode (automatic detection)
► Support IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++(90W)
► Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Support full duplex/half duplex, automatic negotiation
► 48-57VDC wiring board power input
► Supports DIN rail and wall mounted installation
90W Fiber Media Converter Technical Indexes
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
IEEE802.3bt Power over Ethernet |
|
|
Processing Type |
Store-and-Forward |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory |
1 Mbit |
|
Max Packet Length |
9K Bytes |
|
Address Table Size |
2048K MAC Addresses |
|
Input Power |
48~57VDC, 4-pin terminal block |
|
Power Consumption |
95W Max. |
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
802.3bt PoE Media Converter Overview

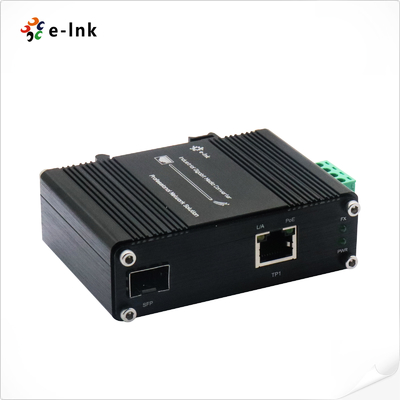

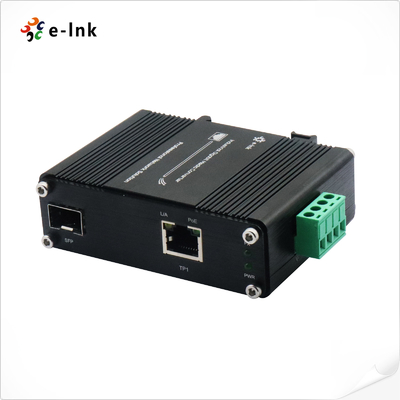

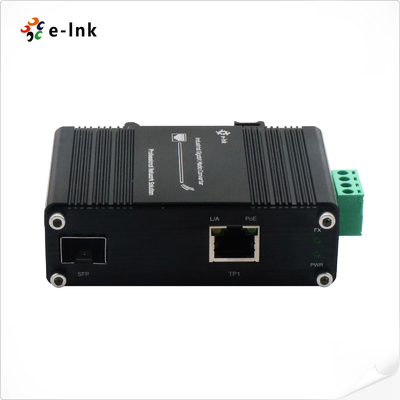

LNK-IMC3012P90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. LNK-IMC3012P90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
90W Gigabit Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC3012P90-SFP |
Outdoor Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Din Rail Ethernet Media Converter with PoE+. |
