Product Details:
Payment & Shipping Terms:
|
Product Name: | DP Optical Fiber Transmitter Receiver | Video Resolution: | 8k/5k/4k/2k/1080p |
---|---|---|---|
Power Input: | 12V DC | DisplayPort Interface: | DP1.4 Female |
IR Interface: | 3.5mm Earphone Seat | Baud Rate: | 115200bps For RS232 |
Transmission Distance: | 300 Meters | Operating Temperature: | -10℃ ~ +60℃ (14℉~140℉) |
Dimension (LxWxH): | 140x85x26 Mm | Gross Weight: | 450G/pair |
High Light: | 8K Display Port 1.4 Fiber Extender,Single Mode Simplex LC Fiber Extender |
Uncompressed 8K DisplayPort 1.4 60Hz Fiber Extender With RS232 and BIDI IR
7680x4320P DP Optical Fiber Transmitter & Receiver over Single Mode Simplex LC
DP Fiber Extender Advantages
► Support resolution up to 8K (7680x4320@60Hz)
► Uncompressed and zero latency transmission
► Extend DP1.4 signal over single core optical fiber up to 300m
► Support IR remote control and RS232
► Adopt CWDM (coarse wavelength division multiplexing) optical fiber technology
► AUX adopts transparent transmission mode, has good compatibility
► Support FEC, solve the compression video output to external display moderate fault tolerance
DisplayPort 1.4 60Hz Fiber Extender Bullet Point
► 985Ft DP1.4 signal Extension
The DP1.4 optical fiber converter can extend 8K video and audio signal from a DisplayPort (DP) source device to a DP monitor up to 985ft away via single mode single core optical fiber
► High Compatibility
Resolutions up to 7680x4320@60 Hz and compatible backwards with lower resolution. Compatible with almost any audio format and overrides such as 32-bit audio channels
► Uncompressed Transmission
DP fiber extender extends 8Kx4K DP signal without delay and losses. Adopt DSC display compression stream technology to support the refresh rate of 240Hz under 4K and 60Hz under 8K

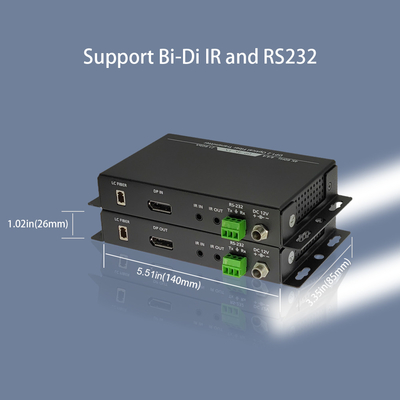

► Support RS232 and Bi-Di IR
RS232 Port for control signal transmission, you can control the RS232 serial device from remote side and support extend IR signal from source to receiver or from transmitter to receiver

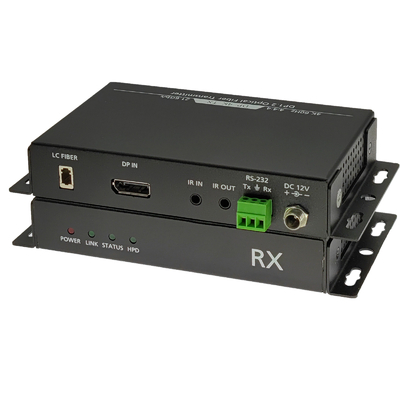

DP Optical Fiber Transmitter and Receiver Overview
DP1.4 fiber extender adopts CWDM optical fiber technology, which multiplexes optical signals of 6 different wavelengths in a single fiber for transmission, and really realizes transmission of an uncompressed DP1.4 video signal in a single fiber.
8K DP Fiber Transmitter Receiver Ordering Information
Model |
Description |
LNK-DP14-T/R |
8K DisplayPort1.4 Fiber Extender With RS232 and Bidirectional IR, Single Mode Simplex LC, 300 meters, used by pairs |
