Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4K HDMI KVM Fiber Transmitter & Receiver | Supported Resolutions: | 3840*2160/30p, 4096x2160/30p, 3840*2160/60P |
|---|---|---|---|
| Compliance: | HDMI V1.4 | KM Support: | USB Keyboard X 1 / USB Mouse X1 |
| Fiber Cable Type: | 50/125μ OM3-300 Multi-Mode Fiber | CEC Support: | CEC Are NOT Supported |
| EDID Pass-through Support: | Only 300 Meters | HDCP Pass-through Support: | Only 300 Meters |
| Limited Warranty: | 2 Year Warranty | Operating Temperature: | 32° To +122° F. (0° To +50° C) |
| High Light: | USB Port HDMI Over Fiber Optic Extender,4K KVM HDMI Over Fiber Optic Extender |
||

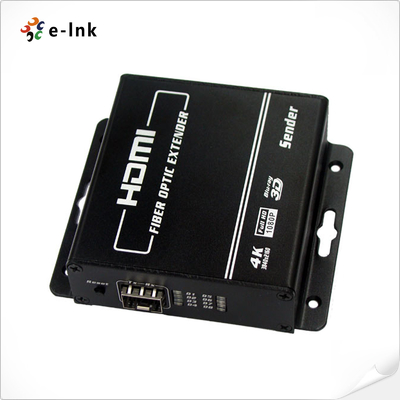

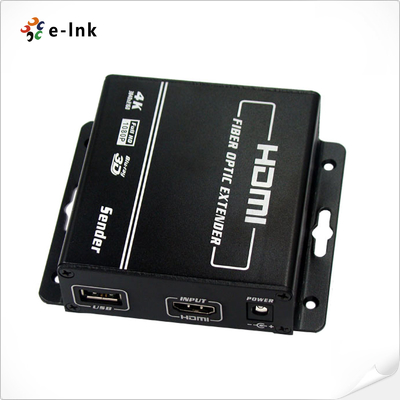

4K HDMI KVM Fiber Optic Extender with Keyboard/Mouse USB Port
HDMI KVM Fiber Extender Advantages
► Supports DVI 1.0 and HDMI v1.4
► Supports resolutions up to 3840*2160/30p, 4096x2160/30p,3840*2160/60P(YCbCr 420),4096*2160/60P(YCbCr 420)
► Supports 3840*2160/30p resolution with color depth up to 24 bits/pixel
► Supports HDMI bit-rates up to3.4 Gbps/color,10.2 Gbps total
► Support 3D TV pass-through
► Support EDID pass-through
► Support USB Keyboard and USB Mouse
HDMI Video Fiber Extender Application
► Digital Signage
► LED signboards in streets and in stadiums
► Medical Imaging Equipment
► Airplane On-board Video System
► Conference Room Video Equipment
► Remote monitor for traffic, industrial, military control
► LCD, Projector, Plasma display connection
► Large video wall system
► TV Broadcast Station
► Home Theater
HDMI KVM USB Fiber Transmitter Receiver Technical Indexes
|
Port name |
Sender |
Receiver |
|
HDMI interface |
HDMI signal input |
HDMI signal output |
|
RESET |
System reset button |
System reset button |
|
POWER |
Power adapter socket |
Power adapter socket |
|
SFP |
SFP+ Module Cage |
SFP+ Module Cage |
|
USB |
Connect to PC USB Host Controller |
1*USB Keyboard and 1*USB Mouse |
|
LED indicator |
||
|
D1 |
ON:Power on |
ON:Power on |
|
D2 |
ON: Receiver Optical input is normal and Receiver have a Displayer plugged into HDMI output port |
Reserve |
|
D3 |
SFP+ RX Optical signal Input indicator ON: Lost of Optical signal OFF: The optical signal input is normal |
SFP+ RX Optical signal Input indicator ON: Lost of Optical signal OFF: The optical signal input is normal |
|
D4 |
Blinking: The Source is connected |
Blinking: The monitor is connected |
|
D5 |
SFP+ TX Fault indicator ON: indicates normal operation OFF: indicates a laser fault of some kind |
|
|
D6 |
ON:USB Device2 Link OK Blinking:Communication |
|
|
D7 |
ON:USB Device1 Link OK Blinking:Communication |
ON:USB Device1 Link OK Blinking:Communication |
|
D8 |
ON: Error |
ON: Error |
4K HDMI KVM Video Fiber Converter Overview
The LNK-KHX2240 series is a high performance 4K HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (4096x2160 / 30p) over cable distances up to 300m.

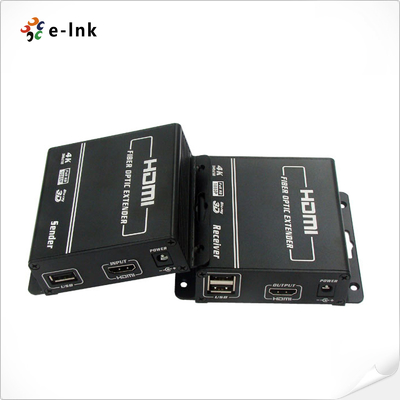

4K HDMI Fiber Extender with Keyboard/Mouse USB Port Ordering Information
|
Model |
Description |
|
LNK-KHX2240-S |
4K HDMI KVM Fiber Optic Extender Sender Unit |
|
LNK-KHX2240-R |
4K HDMI KVM Fiber Optic Extender Receiver Unit |
