Wholesale 4K HDMI Fiber Converter With RS232 External Audio DDC HPDT Signal Support

Large Image : Wholesale 4K HDMI Fiber Converter With RS232 External Audio DDC HPDT Signal Support

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-MHRA4K-S20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Fiber Extender Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/per month

Contact Now

Detailed Product Description

Product Name:	4K HDMI Fiber Transmitter Receiver	Video Resolution:	4K*2K 60Hz, YUV 4:2:0
Power Supply:	5V DC USB Typ-C	Connector:	Female HDMI Type A
Audio Interface:	3.5MM External Stereo Audio	RS232:	3 Pin Terminal, Baud Rate ≤ 38400
Transmission Distance:	Up To 80km (Over Single-mode Fiber)	Operating Temperature:	-10 To + 50°C
Storage Temperature:	-20 To + 80°C	Weight:	60g / 0.13 Lb
Highlight:	4K HDMI Fiber Extender , RS232 HDMI Fiber Extender

4K HDMI Fiber Extender with RS232 & External Audio DDC HPDT Signal Support

HDMI Fiber Converter Advantages
► Transmits HDMI/DVI, audio and RS232 signals up to 80km over a fiber optic cable
► Support video resolution max up to 4K*2K@60Hz, YUV 4:2:0
► Compliance with HDMI 1.4 standard
► High compatibility, can auto-match source and display device
► Built-in automatic adjustment system, make the image smooth, clear and stable
► Built-in ESD protection system

HDMI Fiber Transmitter Receiver Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4
	Maximum pixel clock	165MHz
	Maximum data rate	10.2Gbps
	Resolution range	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
	HDCP	HDCP 1.4
	Connector	HDMI-A Interface
	Video Cable Range	<5M
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode/Multi-mode(OM3)
	Wavelength	Depends on SFP Module and distance
	Transmission distance	300m/20km
Other	Power supply	The power adapter: DC 5~12V
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%

4K HDMI Fiber Extender Overview
The 4K HDMI/DVI Fiber optic extender provides extension of HDMI/DVI video for long distances over one fiber optic cable, it supports high resolution up to 4K*2K@60Hz, YUV 4:2:0. The extender can use for wide range of applications requiring long distance transmission of high resolution video with high quality by its good stability and powerful security.

HDMI Video over Fiber Extender Max Resolution Support

Chroma subsampling	4:4:4	4:2:2	4:2:0
HDMI	4K@30Hz	4K@30Hz	4K@60Hz
DVI	4K@30Hz	4K@30Hz	4K@60Hz

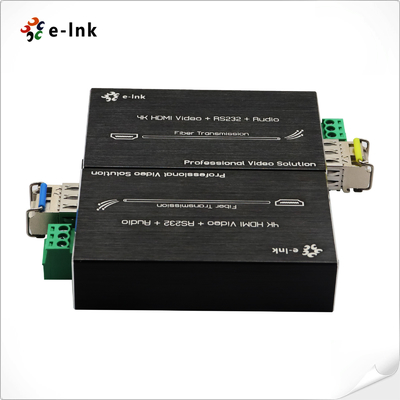

Wholesale 4K HDMI Fiber Converter With RS232 External Audio DDC HPDT Signal Support 0

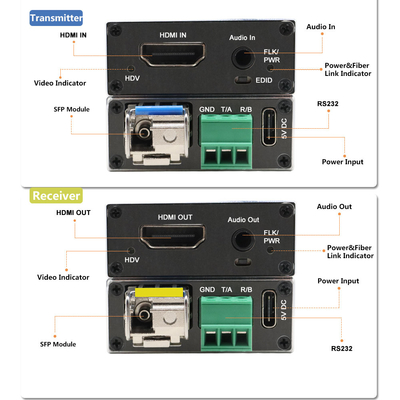

Wholesale 4K HDMI Fiber Converter With RS232 External Audio DDC HPDT Signal Support 1

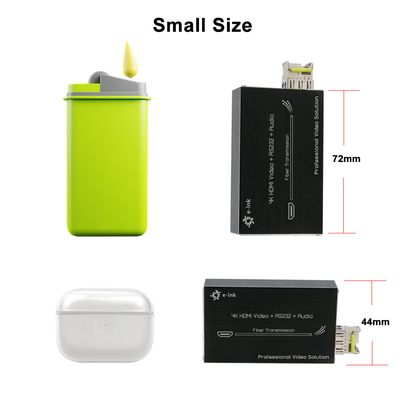

Wholesale 4K HDMI Fiber Converter With RS232 External Audio DDC HPDT Signal Support 2

4K HDMI Fiber Transmitter Receiver Ordering Information

Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
