Product Details:
Payment & Shipping Terms:
|
Product Name: | 4K HDMI Optical Transceiver | Compatiblity: | HDMI 1.4a And HCCP1.2 |
---|---|---|---|
Video Support: | 1920x1200 / 1080p 60Hz, Up To 4K*2K 30Hz | Audio Support: | LPCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio |
Connector Type: | Double LC Receptacle | Transmission Distance: | 300M |
Power Supply: | 5VDC 0.85A (Universal Type 100~240VAC) | Dynamic EDID: | Plug & Play, No Need To Learn |
High Light: | 4K HDMI Optical Transceiver,Multi Mode Fiber HDMI Optical Transceiver,HDMI Optical Transceiver OM3 |
4K HDMI Optical Transceiver OM3 Multi-mode Fiber Transmitter & Receiver
HDMI Fiber Converter Advantages
► Uncompressed transmission,No delay,No losses
► DDC CEC HPD Signal Support
► Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
► Supports All Modes up to 4K*2K@30Hz Resolution
► Miniature form factor for ease of use and installation

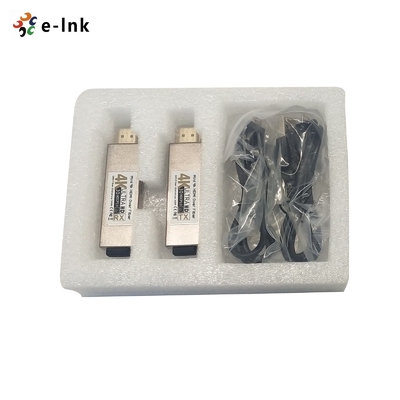

HDMI 4K 30Hz Video Over Fiber Extender Package List
► LNK-106M-T TX (Transmitter, To Video Source)
► LNK-106M-R RX (Receiver, To TV)
► Micro-USB cable (50 cm) (2 pcs.)
► User’s Manual

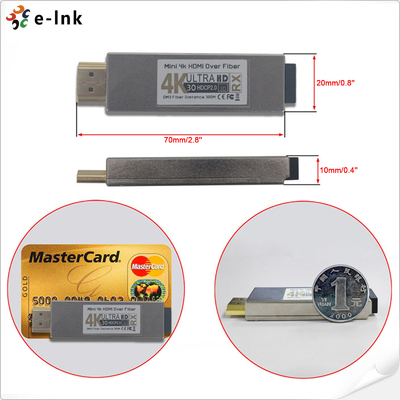

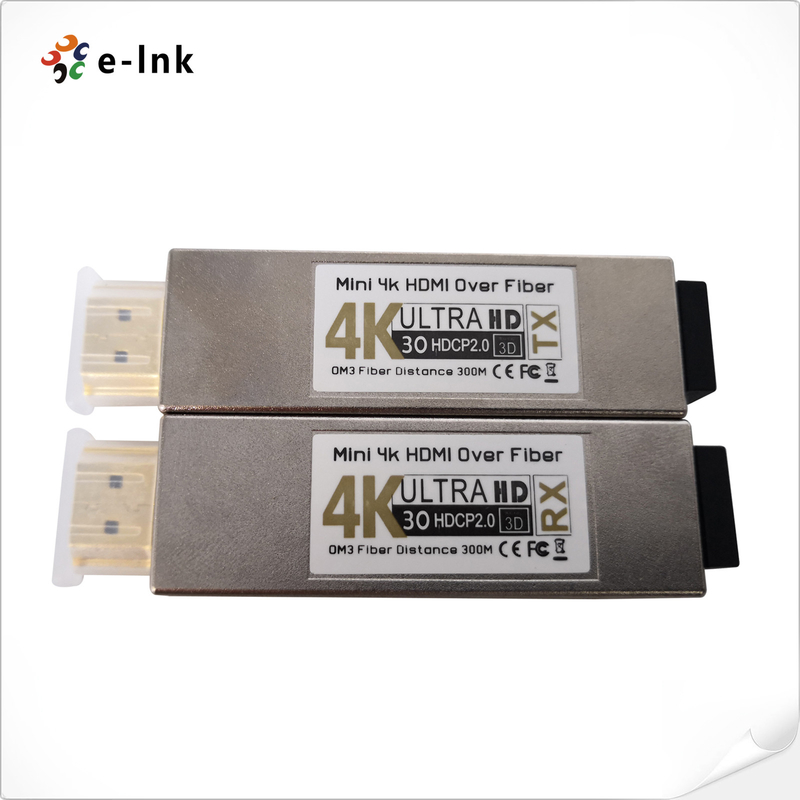

Mini 4K HDMI To Fiber Converter Overview
The E-link LNK-106M HDMI optical transmitter and receiver are designed to send 1 channel of 1.4a compliant HDMI Video with embedded audio over two optical fibers. HDCP is automatically supported for the transmission of content-protected video. Link can operate over single fiber in DVI mode when the HDCP compliance is not required.
The 4K HDMI optical transceiver supports transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, for distances up to 300 meters, at a resolution of 4Kx2K.
HDMI 4K 30Hz Video Over Fiber Transceiver Ordering Information
Model |
Description |
LNK-106M |
Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
FAQ:
Q1: Where do the LNK-106M TX and RX go?
A1: LNK-106M-T is the transmitter, and it is connected to video source devices (PC, DVD, Broadcast Camera etc.).
LNK-106M-R is the receiver, and it is connected to HD display (TV, monitor, projector, etc).
Q2: What is the maximum distance between source device and HD monitor?
A2: LNK-106M can support : Multimode fiber – in excess of 300 meters (1000 feet) at 4Kx2K video resolution
Q3: Can I use the HD monitor’s USB power for LNK-106M-R RX?
A3: Yes, if the HD monitor’s USB power output can provide +5V and 0.5A current.
Note that LNK-106M-R RX may not work during HD monitor’s power-saving mode.
Q4: Does LNK-106M supports HDCP (High-bandwidth Digital Content Protection)?
A4: Yes, LNK-106M supports HDCP.
