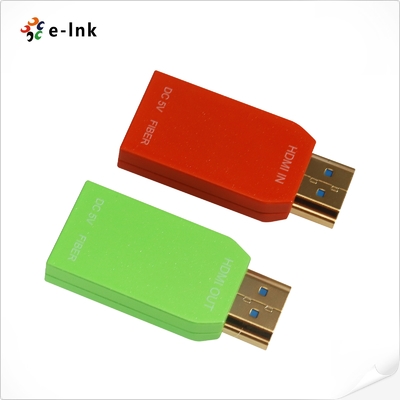

Micro 4K 60Hz HDMI 2.0 Fiber Extender Multi Mode Single LC Transmitter Receiver

Name: Micro 4K 60Hz HDMI 2.0 Fiber Extender Multi Mode Single LC Transmitter Receiver
Brand: E-link
SKU: LNK-109M
Rating: 4.5 (165 reviews)

Large Image : Micro 4K 60Hz HDMI 2.0 Fiber Extender Multi Mode Single LC Transmitter Receiver

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-109M

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Video Over Fiber Extender Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Features:	EDID / HDCP / CEC Supported	Product Name:	4K 60Hz HDMI Fiber Extender
Signal Support:	HDMI 2.0 Format Standard	Video Support:	4K@60Hz / 4K@30Hz / 1080p / 1080i / 720p
Fiber Connector:	1 X LC Connector	Fiber Cable:	OM4 Multi Mode
Power Supply:	5VDC USB Input	Transmission Distance:	Up To 984ft (300M)
Dimension (WxDxH):	2.24 X 0.6 X 0.55 In (57x16x14mm)	Weight:	0.1 Kg / 0.22 Lb
High Light:	Micro 4K Fiber Extender , Multi Mode HDMI 2.0 Fiber Extender

Micro 4K 60Hz HDMI 2.0 Fiber Extender Multi-Mode Single LC Transmitter & Receiver

HDMI Fiber Extender 60HZ Advantages
► Supports HDMI2.0 video up to 4K/60Hz (Y: U: V 4:4:4)
► No need to set or adjust
► Using WDM technology to achieve high-definition audio and video transmission through a single OM4 multimode fiber optic cable
► Using OM4 multimode fiber to support transmission distances up to 300m
► Integrated USB connector for power supply
► TMDS signals are transmitted through multimode optical fibers and have good anti-interference performance

HDMI 2.0 Fiber Transmitter Receiver Technical Indexes

Type of Extender	Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender
Signal Support	HDMI 2.0 HDMI format standard
Video Support	4K@60Hz/4K@30Hz/1080p/1080i/720p
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Transmission Rate	18Gbps(6Gbps/CH)
Transmission Distance	OM4 Multi Mode, up to 984ft (300M)
Operating Temperature	-40°C to + 70°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	2.24 x 0.6 x 0.55 in (57x16x14mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Operation Current	TX:150mA

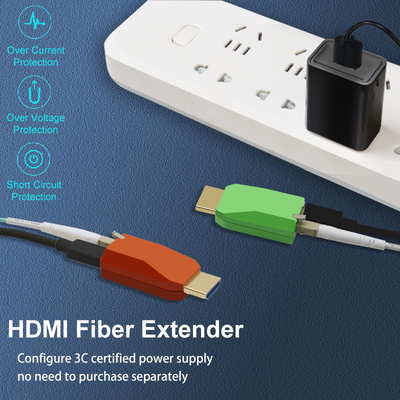

Power Supply	TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable
Power Consumption	TX: <800mW; RX: <400mW

4K HDMI Video Fiber Converter Overview
The 4K HDMI fiber extender is a packaged HDMI optical module designed to support the transmission of uncompressed lossless HDMI 2.0 signals on 850nm multimode fiber, with a distance of up to 300m and a resolution of 4Kx2K@60Hz.LNK-109M-T Convert HDMI signals into a single 18Gb/s serial data stream for transmission on a single fiber. LNK-109M-R converts serial data back to HDMI signal. This product is an ideal choice for large screen displays, conference systems, and home entertainment. This device has anti-interference ability to ensure signal stability.
Micro 4K 60Hz HDMI 2.0 Fiber Extender Multi Mode Single LC Transmitter Receiver 0

Micro 4K HDMI Fiber Transmitter Receiver Ordering Information

Model	Description
LNK-109M	Mini 4K/60Hz HDMI2.0 over Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input, including Power Adapter
