Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial 16GE+4SFP L2+ Managed PoE Switch | Max Packet Length: | 10K Bytes Jumbo Frame |
|---|---|---|---|
| Connector: | 16 X RJ45 | Optical Port: | 4 X 1000Base-X SFP |
| USB-C: | 1 X USB-C (for Management) | PoE Budget: | Up To 480-watt PoE Budget |
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 48~57VDC |
| Dimensions (WxDxH): | 149 X 114 X 50 Mm | Casing: | Aluminum Case |
| Highlight: | 802.3at PoE Industrial Managed Switch,16 Port Managed PoE Switch,4 SFP Managed PoE Switch |
||
Overview

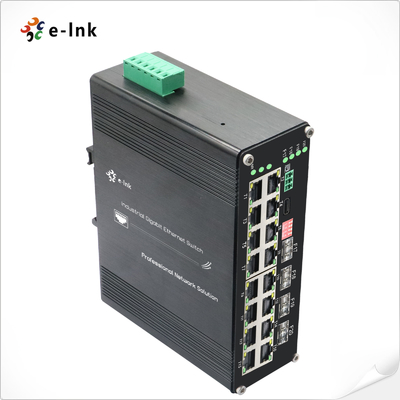

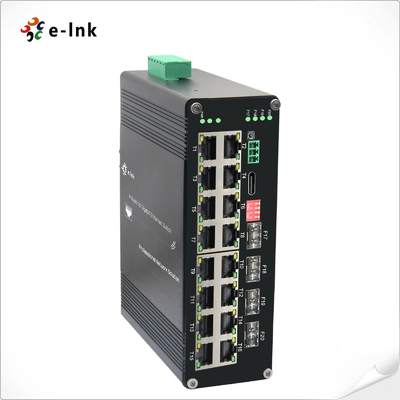

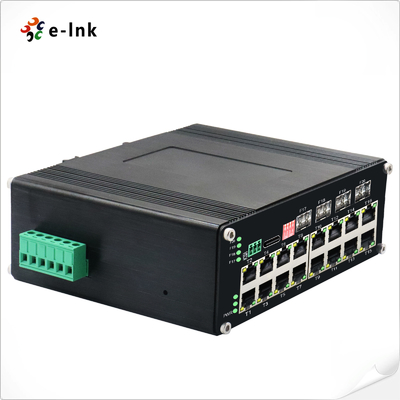

ETH-DIMC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use,
the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points
between remote locations.
Features
Technical Indexes
| Ethernet | ||||
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 10K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| Interface | ||||
| Connector: | 16 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| PoE (Power over Ethernet) | ||||
| PoE Budget: | Up to 480-watt PoE budget | |||
| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled | |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled | |
| Software Features | ||||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT | |||
| Advance Layer 2+ Features |
IPv4/IPv6 Management Static Route |
|||
