IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP

Name: IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP
Brand: E-link
SKU: LNK-IMC205GHP-SFP
Rating: 5 (159 reviews)

Large Image : IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-IMC205GHP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Industrial PoE Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Industrial PoE Switch 4 Port 802.3bt 90W	PoE Budget:	Up To 360-watt
RJ45 Port:	4-Port 802.3at PoE Out	Fiber Port:	2 Port 100/1000X SFP
Input Power:	48~57VDC Redundant Power	Casing:	IP40 Aluminum Case
High Light:	4 Port 802.3bt Industrial PoE Switch , Aluminum Case Industrial PoE Switch , Industrial PoE Switch IP40

Din Rail Industrial Unmanaged PoE Switch 802.3bt 90W

4 Port 10/100/1000T 802.3bt + 1 Port 10/100/1000T + 2 Port 100/1000X SFP

PoE Switch 5 Ports Gigabit 802.3bt Advantages

► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes

► Complies with IEEE 802.3bt PoE Standard

► Up to 4 ports of IEEE 802.3bt/at/af devices powered

► Supports PoE power up to 95 watts for each PoE port

► Supports DIN-Rail installation

PoE Network Switch with 5-Ports RJ45 Technical Indexes

Exchange Property	Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps
Connector	4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Copper Port	5 x RJ45 (4-Port 802.3at PoE Out)
Optical Port	2 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE Standard	IEEE802.3af/at/bt
Power Pin Assignment	Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Budget	Up to 360-watt PoE budget
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Input Power	48~57VDC (Terminal Block)
Power Consumption	382W Max. (PoE in use)
Power Consumption	<5W (PoE not in use)
Power Input Overload	Automatic Resettable
Reverse Polarity	Present
Dimensions (LxWxH)	95 x 88 x 46mm
Weight	300g
Casing	Aluminum Case

Din Rail PoE Switch 5 port Gigabit Overview
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.

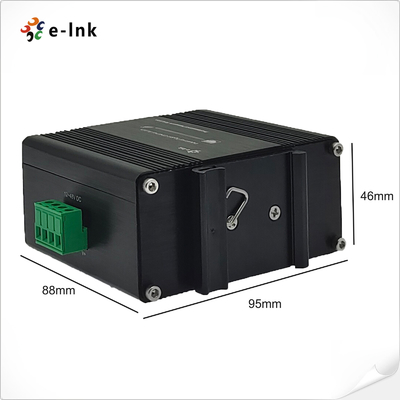

IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP 0

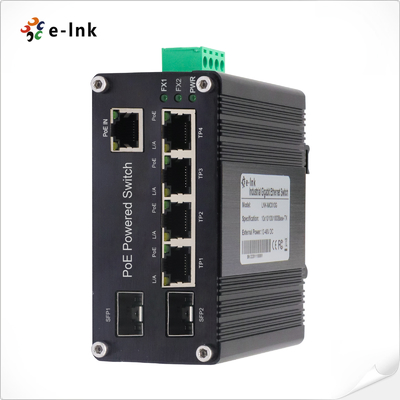

IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP 1
Industrial 5 Port PoE Switch With 1-port Uplink RJ45 Ordering Information

Model	Description
LNK-IMC205GHP-SFP	Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed;
Power Options	► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately
