| Keywords: | Industrial PoE Powered Switch | PoE Standard: | IEEE802.3af/at/bt |
|---|---|---|---|
| Connector: | 5 X RJ45 (1-Port PoE In, 4-Port PoE Out) | PoE Budget: | Up To 71-watt |
| Optical Port: | 2 X SFP 100/1000Base-FX (auto Detection) | Installation: | DIN-Rail Mount |
| Highlight: | 5 Port PoE Powered Switch,DIN Rail PoE Powered Switch,2 SFP Industrial Ethernet Switch |
||

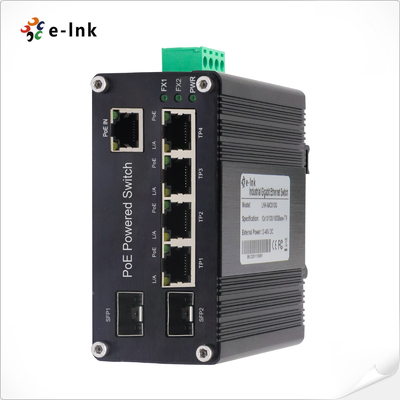

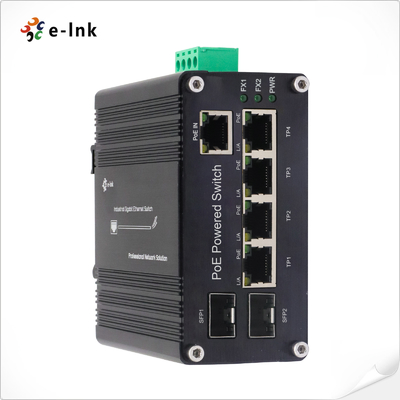

Din Rail Industrial PoE Powered Switch
5 Port 10/100/1000T To 2 Port 100/1000X SFP Ethernet Switch
Gigabit PoE Powered Switch Advantages
► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input
► Four PSE PoE ports, PoE Power Budget up to 71 Watt
► Two 100/1000BASE-X SFP slots for SFP type auto detection
► POE extender: No AC adapter is required, powered by PoE switch or PoE injector
► Expand and repeat your PoE network for up to 4 IP devices
5 Port Ethernet Switch with PoE Passthrough Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 71-watt PoE budget |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |
Pass through PoE: 95W power input from a PoE injector or switch |
|
48~57VDC (Terminal Block) |
|
|
Power Consumption: |
<5W (Non-PoE) |
|
Dimensions (LxWxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
Din Rail PoE Powered Ethernet Switch Overview
E-link LNK-IMC205GPD-SFP Series is a Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough. It’s with one IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, four PSE PoE ports, PoE Power Budget up to 71 W, IEEE 802.3af/at/bt Compliant Output. This switch is designed to supply the PoE to IP devices deployed in the field where the power source is difficult to acquire. Single Ethernet cable is capable of providing 71-Watt total power budget and the pass through switch expand up to 4 network ports with PoE.
5-port Gigabit PoE Powered Switch Ordering Information
|
Model |
Description |
|
LNK-IMC205GPD-SFP |
Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► PoE Pass Through |
|
► Power Supply is to be purchased separately |
