Industrial Managed Network Switch 8 Port 10/100/1000T 802.3at PoE + 2 Port 1000X SFP

Large Image : Industrial Managed Network Switch 8 Port 10/100/1000T 802.3at PoE + 2 Port 1000X SFP

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	ETH-IMC208MP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Managed PoE Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Managed POE Switch 8-Port Gigabit	Casing:	IP40 Aluminum Case
RJ45 Port:	8-Port 10/100/1000T 802.3at PoE	PoE Budget:	Up To 240-watt
Fiber Port:	2-Port 1000X SFP	RS-485 Signals:	Data+, Data-, GND
Highlight:	IP40 Managed Network Switch , Din Rail Managed Network Switch , 8 Port Managed POE Switch

Managed Network Switch Din Rail Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP
Managed Switch 8 Ports PoE Gigabit Advantages

► Support 8x10/100/1000Base-T 802.3at + 2x1000Base-X SFP

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature
PoE Network Switch with 8-Ports RJ45 Technical Indexes

Interface
Connector:	8 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	2 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data +, Data-, GND
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3 (to be upgraded)	250m PoE Network	ON - Enabled	OFF - Disabled
	SW 4 (to be upgraded)	PoE Reset	ON - Enabled	OFF - Disabled

Din Rail Managed PoE Switch Overview
ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

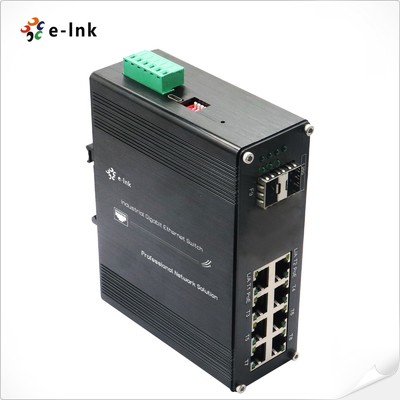

Industrial Managed Network Switch 8 Port 10/100/1000T 802.3at PoE + 2 Port 1000X SFP 0

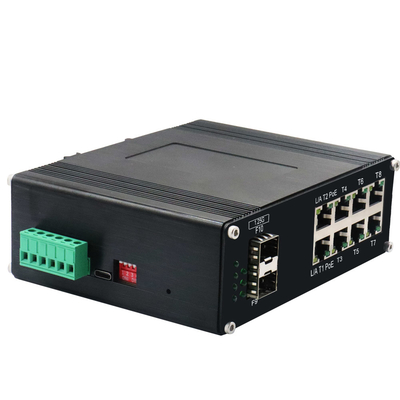

Industrial Managed Network Switch 8 Port 10/100/1000T 802.3at PoE + 2 Port 1000X SFP 1
Industrial Network Switch With 8-port PoE Ordering Information

Model	Description
ETH-IMC208MP	Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page
SFP Options	SFP module is to be purchased separately.
Mounting Options	Default DIN-Rail Bracket installed
Power Options	DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	Power Supply is to be purchased separately.
