Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial Managed Ethernet Switch | Mounting Options: | DIN-Rail Mount |
|---|---|---|---|
| Input Power: | 12~48VDC Redundant Power | DIP: | 4-digit DIP Switch Function |
| Fiber Port: | 14-Port 1000Base-X SFP | USB-C: | 1 X USB-C (for Management) |
| High Light: | Din Rail Managed Fiber Switch,Industrial L2+ Managed Fiber Switch |
||
Din Rail Managed Fiber Switch Industrial L2+ 12-Port 1000X SFP + 2-Port 1000X SFP
Managed Fiber Switch 14-Ports Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► IP40 Aluminum Case
Network Switch with 14-Ports SFP Technical Indexes
|
Interface |
||||
|
Optical Port: |
14 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|

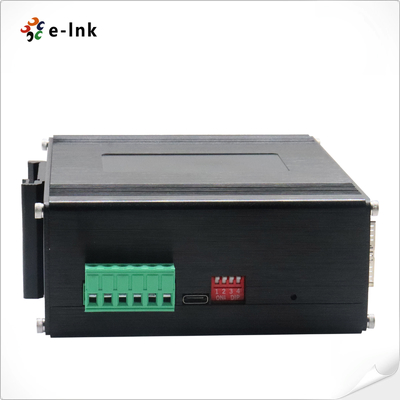

DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|

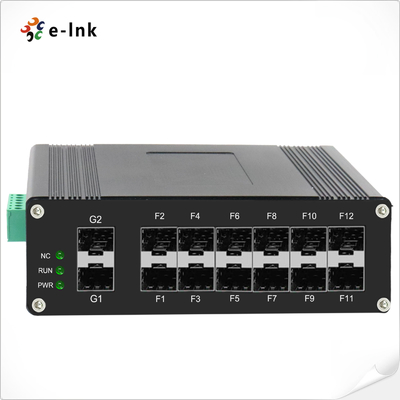

Din Rail Managed Fiber Switch Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment.
Industrial Network Switch With 14-port SFP Ordering Information
|
Model |
Description |
|
ETH-DIMC2012FM |
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed |
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
