E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Managed 8 Port Gigabit Poe Switch | Power Input: | DC 48-57V |
|---|---|---|---|
| Fiber Port: | 2-port 1000Base-FX SFP | PoE Port: | 8-port 10/100/1000Base-TX 802.3at |
| USB-C Interface: | 1 X USB-C (for Management) | RS-485 Signals: | Data +, Data-, GND |
| Highlight: | L2 Managed PoE Switch,8 Port Gigabit Managed PoE Switch |
||

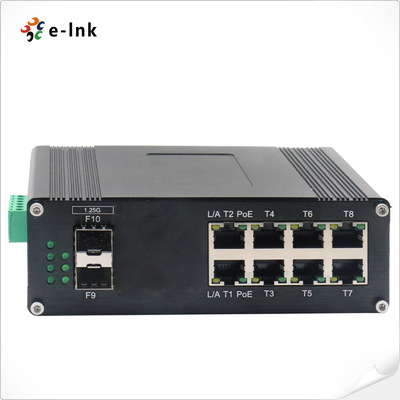

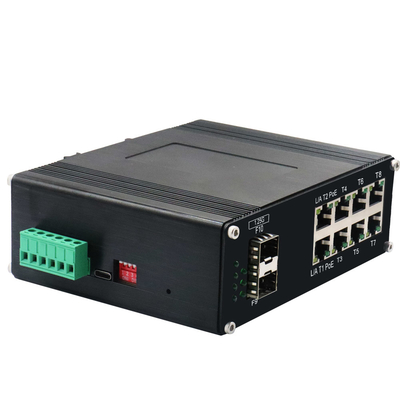

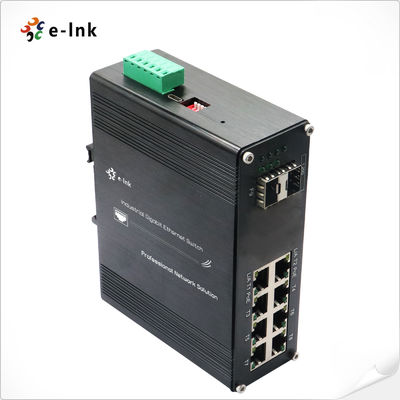

Industrial L2 Managed PoE Switch 8-Port 10/100/1000T 802.3at To 2-Port 1000X SFP
8-Port 802.3at Managed PoE Switch Advantages
►IEEE802.3af/at compliant
►DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
►Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
►-40°C to 80°C (-40°F to 176°F) operating temperature
Managed Fiber Network Switch Technical Indexes
|
Connector |
8 x RJ45 |
|||
|
RS485 |
1 x RS485 (Optional) |
|||
|
Optical Port |
2 x 1000Base-X SFP |
|||
|
USB-C |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Physical interface |
Industrial standard 3-pin screw terminal |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data +, Data-, GND |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 (to be upgraded) |
250m PoE Network |
ON - Enabled |
OFF - Disabled |
|
|
SW 4 (to be upgraded) |
PoE Reset |
ON - Enabled |
OFF - Disabled |
|
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
Din Rail 8-port PoE To 2-port SFP Managed Switch Overview
ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
Copper to Fiber 8 Port Network Switch Ordering Information
|
Model |
Description |
|
ETH-IMC208MP |
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
