Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mini Industrial Managed 8GE+2SFP Ethernet Switch | Backplane Bandwidth: | 20Gbps |
|---|---|---|---|
| Packet Buffer Memory: | 9216 Bits | Max Packet Length: | 9K Bytes Jumbo Frame |
| Connector: | 8 X RJ45 | Optical Port: | 2 X 100/1000Base-X SFP |
| Input Power: | 12~48VDC | Mounting Options: | DIN-Rail |
| Dimensions (WxDxH): | 95 X 88 X 46 Mm | Weight: | 0.3Kg |
| High Light: | Industrial Managed Ethernet Switch,DIN Rail Managed Ethernet Switch |
||
Overview

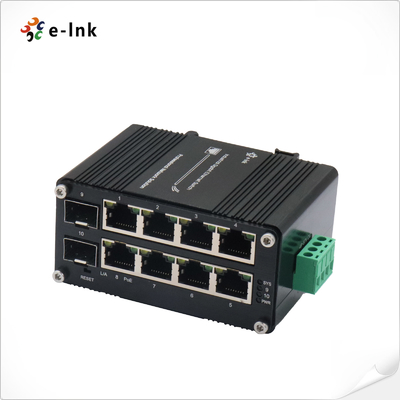

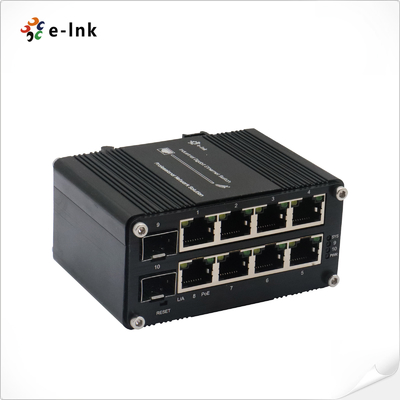

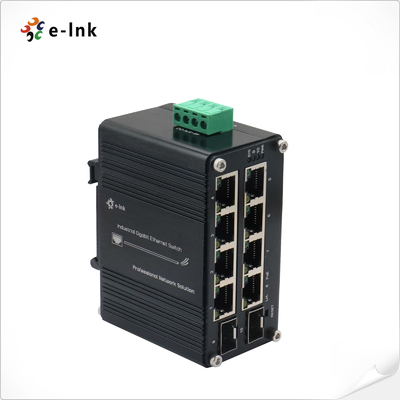

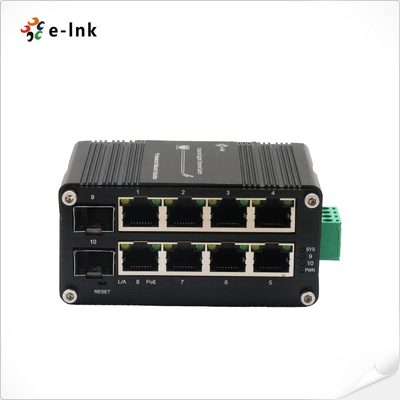

LNK-IMC208SG-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
Technical Indexes
| Ethernet | |
| Backplane bandwidth | 20Gbps |
| Packet Buffer Memory: | 9216 bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-X SFP |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| Fiber: | Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): | 95 x 88 x 46 mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Software Features | |
| Redundancy Protocols | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1/V2/V3 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
