Product Details:
Payment & Shipping Terms:
|
Fiber Connector: | LC Connector | Resolution: | Up To 4K/2K |
---|---|---|---|
Input Signals: | HDMI | Signal Support: | HDMI 2.0 |
Dimensions( L X W X H): | 57x16x14mm | Weight: | 0.1 Kg / 0.22 Lb |
High Light: | Mini HDMI Over Fiber Optic Extender,FCC HDMI Over Fiber Optic Extender,HDMI2.0 Multimode Fiber Extender |

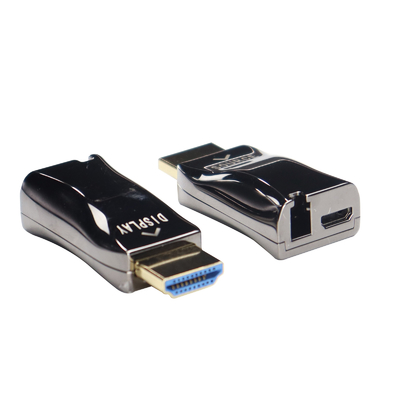

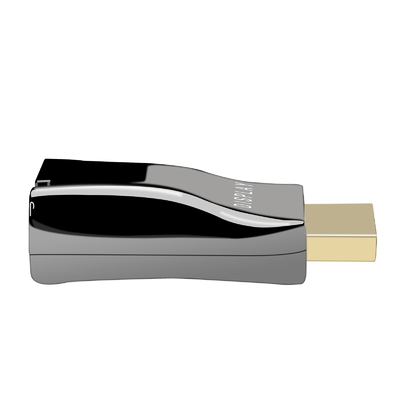

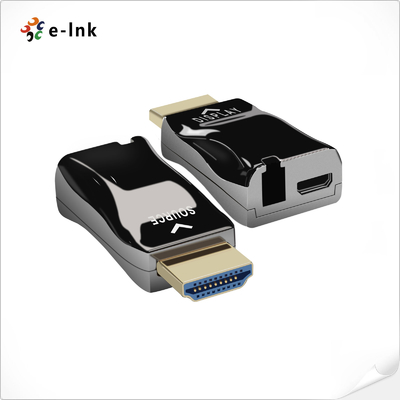

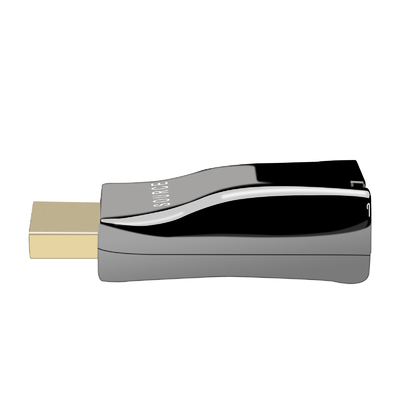

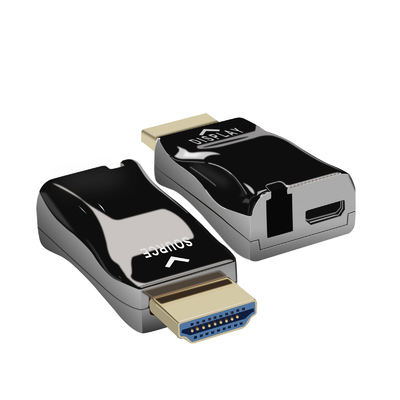

HDMI Over Fiber Optic Extender Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender
HDMI Over Fiber Optic Extender Overview
The LNK-108M is a mini 4K/60Hz HDMI2.0 over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.0 signal over multimode optical fiber at 850nm, up to distances of 1000m, at a resolution of 4Kx2K@60Hz. LNK-108M-T converts an HDMI signal to a single 18Gb/s serial data stream for transmission over single optical fibers. LNK-108M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
HDMI Over Fiber Optic Extender Features
► Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber
► Supports up to 300m Transmission Distance with OM4 multimode fiber
► Standard HDMI2.0 Connector
► Integrated USB Connector for Power
► Uses Small, Reliable LC Optical Connector
► Support EDID, HDCP, CEC transparent transmission
Type of Extender | Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender |
Input Signals | HDMI2.0 |
Signal Support | HDMI 2.0 HDMI format standard |
Video Support | 4K@60Hz/4K@30Hz/1080p/1080i/720p |
Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Website Specifications | Color space 444, 420, 400 |
EDID | Support |
HDCP | Support |
CEC | Support |
Fiber Connector | 1 x LC Connector |
Transmission Rate | 18Gbps(6Gbps/CH) |
Transmission Distance | OM4 Multi Mode, up to 984ft (300M) |
Operating Temperature | -40°C to + 70°C |
Storage Temperature | -20°C to + 85°C |
Humidity | to 90% RH (non-condensing) |
Safety Approvals | CE, RoHS, FCC |
Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
Weight | 0.1 kg / 0.22 lb |
HDMI Over Fiber Optic Extender Application
Model | Description |
LNK-108M | Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
