Industrial L2+ Managed Fiber Optic Switch 12 Port 1000X SFP + 2 Port 1000X SFP Fiber

Name: Industrial L2+ Managed Fiber Optic Switch 12 Port 1000X SFP + 2 Port 1000X SFP Fiber
Brand: E-link
SKU: ETH-DIMC2012FM
Rating: 5 (168 reviews)

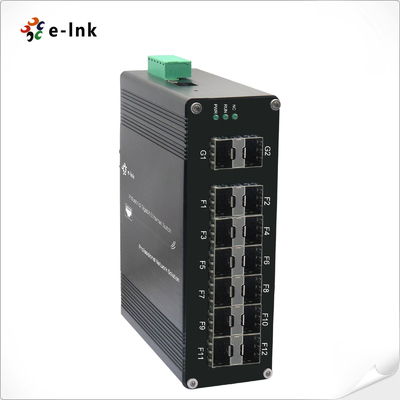

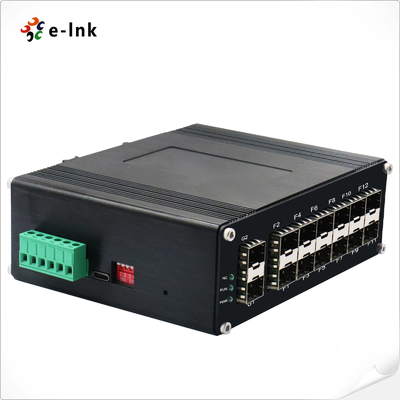

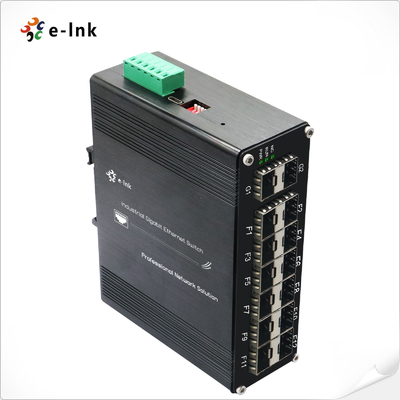

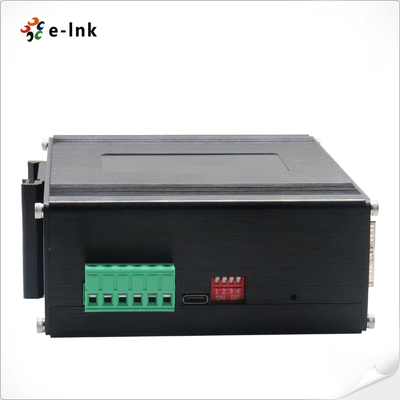

Large Image : Industrial L2+ Managed Fiber Optic Switch 12 Port 1000X SFP + 2 Port 1000X SFP Fiber

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	RoHS,CE
Model Number:	ETH-DIMC2012FM

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-15working days
Payment Terms:	L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Address Table Size:	8K MAC Addresses	Optical Port:	14 X 1000Base-X SFP
Power Consumption:	8W Max	Mounting Options:	DIN-Rail Mount
One-Key Vlan:	Support	Ring Management:	Support
High Light:	DIN Rail mount Fiber Optic Switch , L2+ Managed Fiber Optic Switch

Fiber Optic Switch Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Fiber Optic Switch Advantages

► Support 12x1000Base-X SFP + 2x1000Base-X SFP

► DIP Switch supports one-key VLAN, one-key Ring Management

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

Fiber Optic Switch Technical Indexes

Software Features
Redundancy Protocols	Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support	Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN	Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management	SNTP
QOS	Flow-based redirection Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
Alarm Management	Support 1 way relay alarm output, RMON, TRAP
Security	Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Fiber Optic Switch Overview

ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius.

Industrial L2+ Managed Fiber Optic Switch 12 Port 1000X SFP + 2 Port 1000X SFP Fiber 0
