L2+ Managed Hardened Ethernet Switch 16 Port 10/100/1000T 802.3at PoE + 4 Port 1000X SFP

Name: L2+ Managed Hardened Ethernet Switch 16 Port 10/100/1000T 802.3at PoE + 4 Port 1000X SFP
Brand: E-link
SKU: ETH-DIMC2416MP
Rating: 4.8 (147 reviews)

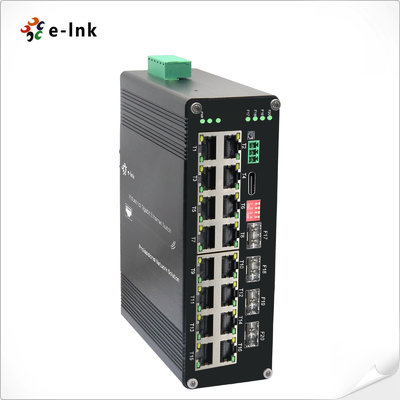

Large Image : L2+ Managed Hardened Ethernet Switch 16 Port 10/100/1000T 802.3at PoE + 4 Port 1000X SFP

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	RoHS,CE
Model Number:	ETH-DIMC2416MP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-15working days
Payment Terms:	L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Connector:	16 X RJ45	Optical Port:	4 X 1000Base-X SFP
Power Pin Assignment:	4/5(+), 7/8(-)	PoE Budget:	Up To 480-watt PoE Budget
250m PoE Network:	Support	PoE Reset:	Support
High Light:	L2+ Hardened Ethernet Switch , Managed Hardened Ethernet Switch

Industrial Ethernet PoE Switch L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

Industrial Ethernet PoE Switch Advantages

► Support 16x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

Industrial Ethernet PoE Switch Technical Indexes

Interface
Connector:	16 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	4 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data +, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 480-watt PoE budget
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.

Industrial Ethernet PoE Switch Overview

ETH-DIMC2416MP series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE +4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports.

L2+ Managed Hardened Ethernet Switch 16 Port 10/100/1000T 802.3at PoE + 4 Port 1000X SFP 0

Ordering Information

Model	Description
ETH-DIMC2416MP	Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
