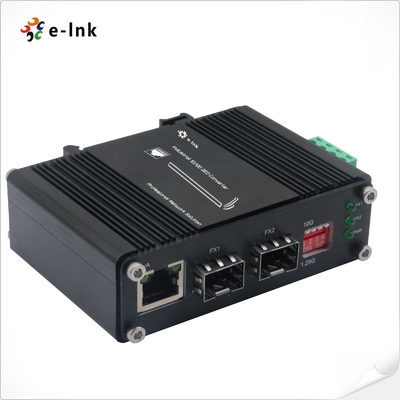

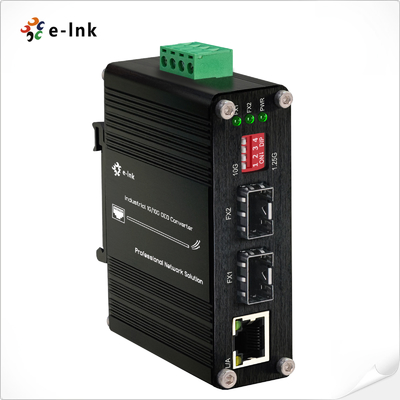

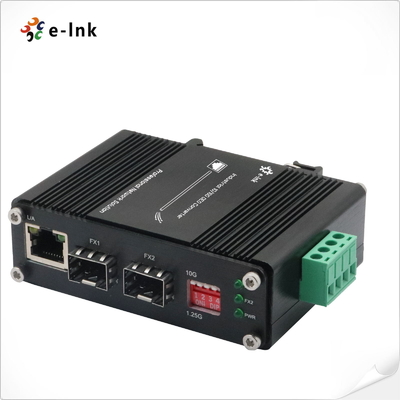

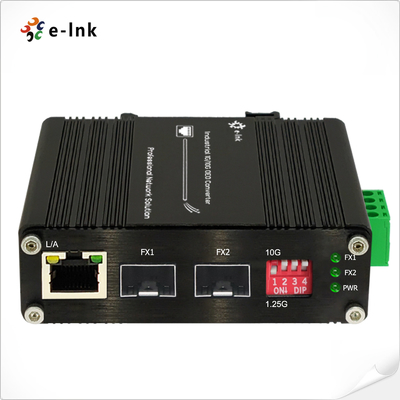

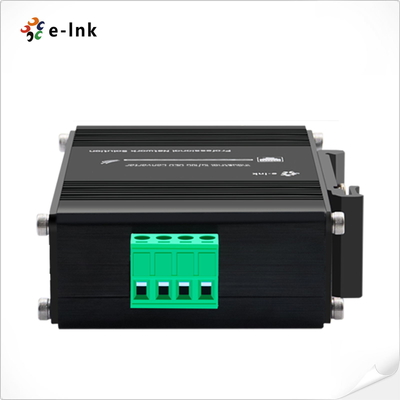

Industrial 10G OEO Converter 3R Repeater SFP+ To SFP+ For Long Distance Transmission

Industrial 1G/10G SFP+ to SFP+ OEO Converter Media Converter


Overview

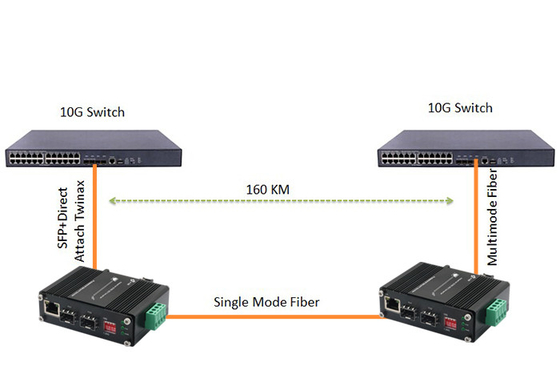

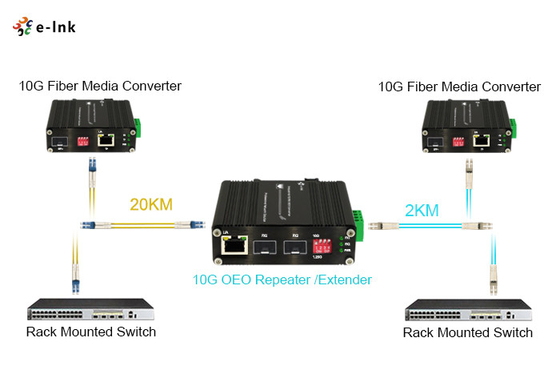

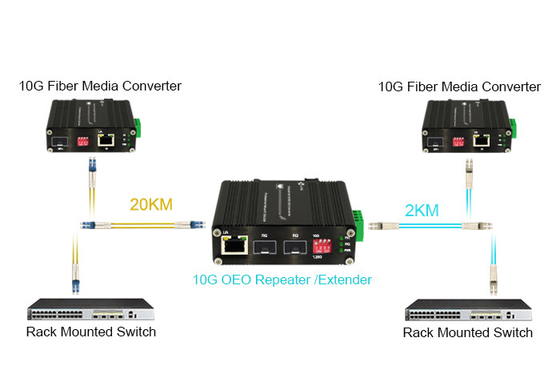

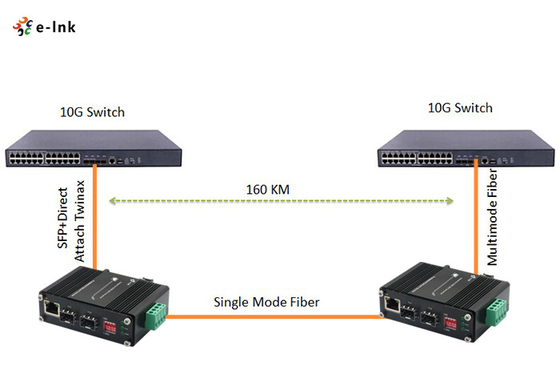

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.

It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.

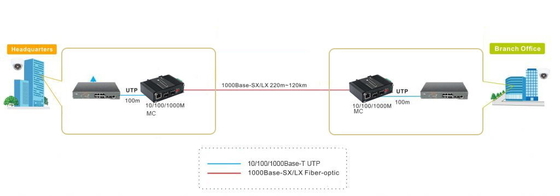

When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Features

• Transparent Transport and very low delay
• 3R function (Regeneration, Reshaping, Re-timing)
• Support hot plugging, full state led display, easy installation
• Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
• Support Loop-back and Jumbo Frame
• DIP Switch supports 1.25G/10G fiber data rate switching
• Can be as 1G Ethernet Media Converter if using Ethernet
• IP40 Aluminum Case
• Supports DIN-Rail/Wall-Mount installation
• -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Order Information
