E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial Ethernet Switch 8-Port PoE | PoE Protocol: | IEEE802.3af/at Protocol |
|---|---|---|---|
| Power Distance: | 250m 20W | Ethernet Port: | 8-Port 10/100/1000BASE-TX RJ45 |
| Fiber Port: | 2-Port 10/100/1000BASE-FX SFP | Installation: | DIN-Rail Or Wall Mounts |
| Highlight: | Industrial PoE Switch 20W,Aluminum Industrial PoE Switch,2 SFP 8 Port PoE Switch |
||

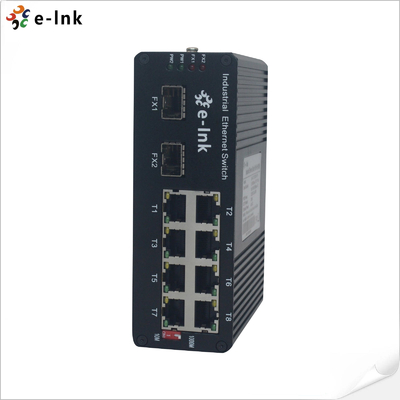

Industrial 8-Port 10 100 1000BASE-T PoE To 2-Port 1000BASE-SFP Fiber 250m PoE Switch
8-Port 250m PoE Switch Advantages
►Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
►It will give the speed of 10Mbps at 250meter when connect IP cameras
►8 10/100/1000Base-TX + 2 1000Base-FX
►Supports IEEE 802.3at PoE+ (30W per port)
►9K Bytes Jumbo Frame
►Redundant Power Inputs
Unmanaged Network Switch Technical Indexes
| Power | Power Supply | Industrial Power Adaptor | |||
| Voltage range | DC48V~57V | ||||
| Consumption | ＜5W , PoE output < 240W | ||||
| Ethernet | Ethernet Port |
1～8 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
| Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
| Cable | Cat6/7 network cable | ||||
| PoE Protocol | IEEE802.3af/at protocol | ||||
| PoE Power Supply | End-span | ||||
| Working Environment | Working Temperature | -40℃~75℃ | |||
| Storage Temperature | -40℃~85℃ | ||||
| Mechanical | Dimension (LxWxH) |
139mm×109mm×50mm | |||
| Out Shell | Aluminum | ||||
| Color | Black | ||||
| Weight | 0.6kg | ||||
| Power/Distance 54V |
Distance | 100m | 150m | 200m | 250m |
| Power | 26W | 24W | 23W | 20W | |
Din Rail 8-port PoE To 2-port SFP Fiber Ethernet Switch Overview
LNK-GYT208GP-SFP Series is 250m Industrial PoE Switch with 8 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 8 ports PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber.
Copper to Fiber 802.3at PoE Switch Ordering Information
| Model | Description |
| LNK-GYT208GP-SFP | 8-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |

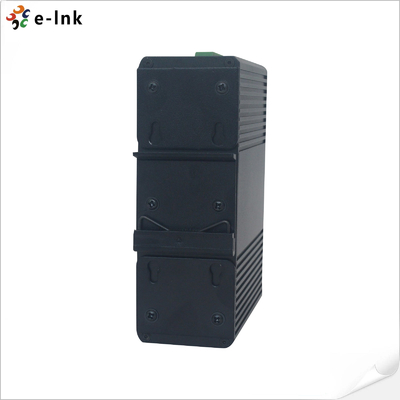

| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
