Commercial Managed 24 Port PoE Switch 4 Port 10G SFP+ L3 Managed Switch

Name: Commercial Managed 24 Port PoE Switch 4 Port 10G SFP+ L3 Managed Switch
Brand: E-link
SKU: TS-M324GP-4XSFP
Rating: 4.6 (117 reviews)

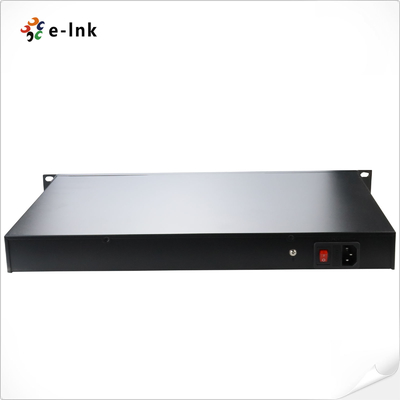

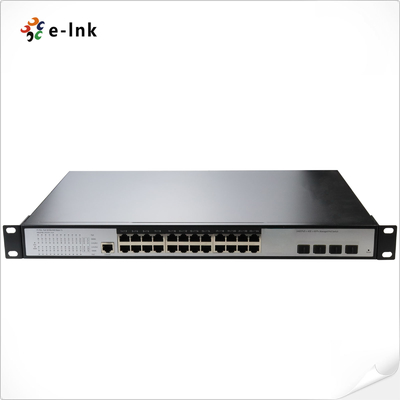

Large Image : Commercial Managed 24 Port PoE Switch 4 Port 10G SFP+ L3 Managed Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	TS-M324GP-4XSFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	POE Fiber Ethernet Switch Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000pcs/per month

Contact Now

Detailed Product Description

Keywords:	Commercial Managed 24-Port PoE Switch	Management Grade:	Layer Three Management
RJ45 Port:	24 Port 10/100/1000BASE-T 802.3at	Fiber Port:	4 10Gigabit SFP+
Total Power Budget:	Up To 400 Watts	Operating Temperature:	0℃~50℃
Highlight:	400w Managed 24 Port PoE Switch , L3 Managed 24 Port PoE Switch , 10G SFP+ L3 Managed Switch

Commercial 24 Port 10 100 1000BASE-T 802.3at PoE To 4 Port 10G SFP+ L3 Managed Switch
10G Network Switch Advantages
► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10G SFP+
► RJ45 console interface for basic management and setup
► Web smart management for easy application
► Plug & play, no configuration required
Layer 3 Managed PoE Switch Technical Indexes

Physical Port
Fixed Port	24 Port 10/100/1000BASE-T 802.3at PoE 4 10Gigabit SFP+ ports 1 Console port 1 USB port 1 Reset port
PoE Standard	24x IEEE 802.3af /IEEE 802.3at PoE
Power budget	Max. PoE output power budget 30W
Power Information
Power	Built-in power AC 100~240V 50/60Hz MAX Power 400W (370W for PoE)
Physical Property
Protection grade	IP30
Dimensions	440mm x 290mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	4500g
Warranty
MTBF	200,000 hours
Defects Liability Period	1 year warranty, lifetime technical support

24-port PoE To 4-port 10G SFP Ethernet Switch Overview

TS-M324GP-4XSFP Layer 2 Managed Gigabit Switch provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra 10G SFP+ fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 400 watts for the different types of PoE applications being employed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Enterprise Copper To Fiber PoE Switch Ordering Information

Model	Description
TS-M324GP-4XSFP	L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch, total power budget of up to 400 watts
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
