L2+ Managed Ethernet Switch 24 Port 10 100 1000T To 4 Port Gigabit TP/SFP Combo

Name: L2+ Managed Ethernet Switch 24 Port 10 100 1000T To 4 Port Gigabit TP/SFP Combo
Brand: E-link
SKU: TS-M324G-4G4SFP
Rating: 4.7 (162 reviews)

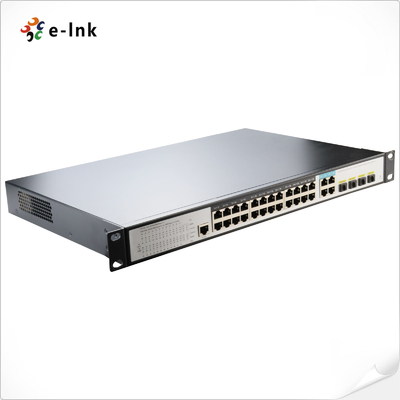

Large Image : L2+ Managed Ethernet Switch 24 Port 10 100 1000T To 4 Port Gigabit TP/SFP Combo

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	TS-M324G-4G4SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Managed Ethernet Switch Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000pcs/per month

Contact Now

Detailed Product Description

Keywords:	Commercial Managed 24-Port Ethernet Switch	Power:	100~240VAC Built-in Power
RJ45 Port:	24x10/100/1000Base-TX	Fiber Port:	4xGigabit TP/SFP Combo
Redundant Network:	STP, RSTP, EAPS/ERPS	Dimensions:	440mm X 290mm X 45mm
Highlight:	L2+ Managed Ethernet Switch , IP30 Managed Ethernet Switch , ROHS 24 Port Ethernet Switch

L2+ 24-Port 10 100 1000T To 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch

24-port Ethernet Network Switch Advantages

► 24-Port 10/100/1000Base-T RJ45

► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces

► RJ45 console interface for basic management and setup

► Bandwidth management based on port input and output

Layer 2 Managed Fiber Optic Switch Technical Indexes

RJ45 port and speed	24x10/100/1000Base-TX
Fiber port and speed	4xGigabit TP/SFP Combo
Packet buffer	4Mbits
MAC address table	8K
Transmission mode	Store and Forward (full/half duplex mode)
Exchange property	Delay time: < 7μs Backplane bandwidth: 56Gbps
Protection grade	IP30
Dimensions	440mm x 290mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	3600g
Operating Temperature	0℃~55℃
Storage Temperature	-40℃~75℃

24-port RJ45 To 4-port SFP Gigabit Ethernet Switch Overview

TS-M324G-4G4SFP product is a Managed Ethernet switch which provides 24 port 10/100/1000Base-TX and 4x Gigabit TP/SFP combo ports. This TS-M324G-4G4SFP 24 ports WEB Smart Gigabit Switches fill the gap between unmanaged and fully managed switches. It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation.

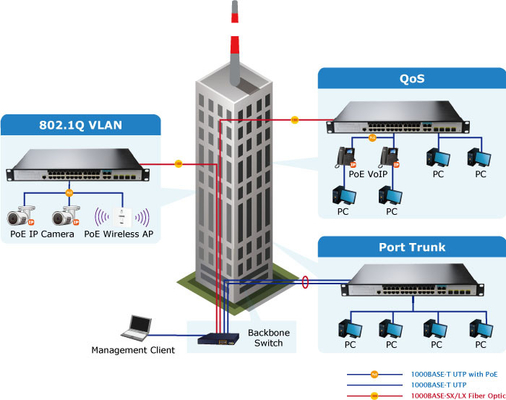

L2+ Managed Ethernet Switch 24 Port 10 100 1000T To 4 Port Gigabit TP/SFP Combo 0

L2+ Managed Ethernet Switch 24 Port 10 100 1000T To 4 Port Gigabit TP/SFP Combo 1

Enterprise Gigabit Fiber Ethernet Switch Ordering Information

Model	Description
TS-M324G-4G4SFP	L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
