Gigabit 802.3at 48 Port PoE Switch 4 Port 100/1000X SFP L2 Managed

Name: Gigabit 802.3at 48 Port PoE Switch 4 Port 100/1000X SFP L2 Managed
Brand: E-link
SKU: TS-M348GP-4SFP
Rating: 5 (192 reviews)

Large Image : Gigabit 802.3at 48 Port PoE Switch 4 Port 100/1000X SFP L2 Managed

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	TS-M348GP-4SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	POE Fiber Ethernet Switch Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000pcs/per month

Contact Now

Detailed Product Description

Keywords:	L2 Managed 48-Port PoE Switch	PoE Standard:	802.3at 36W
RJ45 Port:	48-port 10/100/1000BASE-T PoE	Fiber Port:	4-port 100/1000Base-FX SFP
Operating Temperature:	0℃~50℃	Installation Mode:	Rack Mounting
High Light:	802.3at 48 Port PoE Switch , L2 Managed 48 Port PoE Switch , 48 Port PoE Ethernet Switch

Enterprise L2+ 48-Port Gigabit 802.3at PoE To 4-Port 100/1000X SFP Managed Switch

Commercial 48-port PoE Network Switch Advantages

► 48-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function

► 4-Port 100/1000BASE-X mini-GBIC/SFP

► RJ45 console interface for basic management and setup

► Web smart management for easy application

Layer 2 Managed Fiber Optical Switch Technical Indexes

Fixed Port	48 Port 10/100/1000BASE-T 802.3at PoE 4 Gigabit SFP ports 1 Console port
Ethernet standards	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q , IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d , IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol
Exchange property	Delay time: < 7μs Backplane bandwidth: 104Gbps
PoE Standard	48x IEEE 802.3af /IEEE 802.3at PoE
Power budget	Max. PoE output power budget 30W
Power	Built-in power AC 100~240V 50/60Hz MAX Power 500W
Dimensions	440mm x 290mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	5500g

48-port PoE To 4-port SFP Gigabit Fiber Switch Overview

TS-M348GP-4SFP Layer 2 Managed Gigabit Switch provides 48 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 500 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

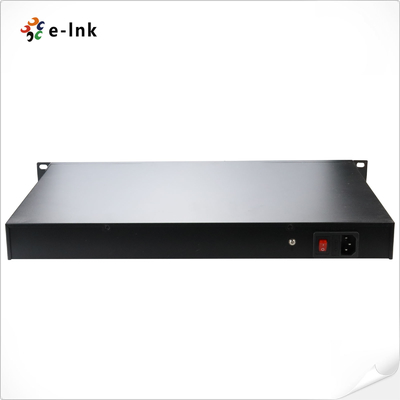

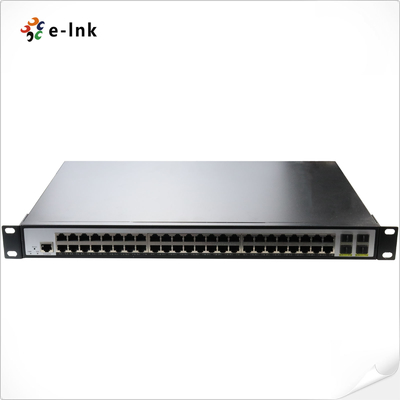

Gigabit 802.3at 48 Port PoE Switch 4 Port 100/1000X SFP L2 Managed 0

Gigabit 802.3at 48 Port PoE Switch 4 Port 100/1000X SFP L2 Managed 1

Enterprise Gigabit PoE Switch Ordering Information

Model	Description
TS-M348GP-2SFP	L2+ 48-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Switch, total power budget of up to 500 watts
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
