Enterprise L2 Managed Ethernet Switch 16 Port 1000Mbps RJ45 To 2 Port 100/1000X SFP

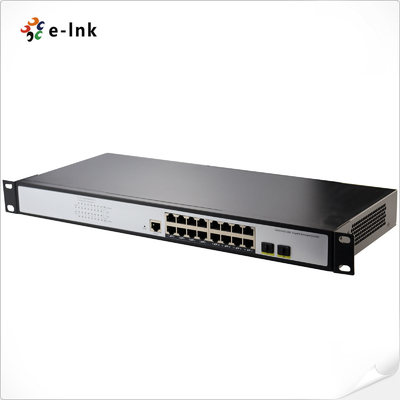

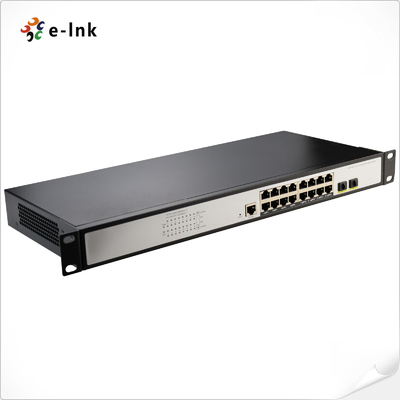

Large Image : Enterprise L2 Managed Ethernet Switch 16 Port 1000Mbps RJ45 To 2 Port 100/1000X SFP

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	TS-M316G-2SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	QTY 1~10pcs 119USD, QTY<100pcs 109USD, QTY>100pcs 99USD
Packaging Details:	Managed Ethernet Switch Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000pcs/per month

Contact Now

Detailed Product Description

Keywords:	L2 Managed 16-Port Network Switch	Protection Grade:	IP30
RJ45 Port:	16x10/100/1000Base-TX	SFP Port:	2x100/1000Base-FX
Operating Temperature:	0℃~55℃	Installation Mode:	Rack Mounting
Highlight:	Enterprise L2 Managed Ethernet Switch , 16 RJ45 Managed Ethernet Switch , L2 Managed 16 Port Network Switch

Enterprise L2 Managed Ethernet Switch 16-Port 1000Mbps RJ45 To 2-Port 100/1000X SFP
Commercial Network Switch Hub Advantages
► 16-Port 10/100/1000Base-T RJ45
► 2-Port 100/1000BASE-X mini-GBIC/SFP
► Web smart management for easy application.
► Bandwidth management based on port input and output
► Plug & play, no configuration required
Layer 2 Managed 16-Port Ethernet Switch Technical Indexes

Ethernet standards	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol
Exchange property	Delay time: < 7μs Backplane bandwidth: 56Gbps
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Software Features	Redundant network: STP, RSTP, EAPS/ERPS
	Multicast: IGMP Snooping V1/V2/V3, GMRP
	Support port-based VLAN Up to 4096 VLANs Support Voice VLAN
	802.1p port queue priority algorithm Cos/Tos, QOS remark WRR (Weighted Round Robin), weighted priority rotation algorithm WRR, SP, priority scheduling modes
	WEB interface management CLI management based on Telnet, TFTIP, Console SNMP V1/V2/V3 management
	Support many-to-one port mirroring
	DHCP Snooping
	Security DHCP Snooping, Option 82, 802.1X, User hierarchical management, ACL, DDOS, port based MAC filtering / binding
	Half duplex based on Back pressure; Full duplex based on PAUSE frame

16-port RJ45 To 2-port SFP Gigabit Fiber Switch Overview

TS-M316G-2SFP product is a Managed Ethernet switch which provides 16 port 10/100/1000Base-TX and 2x1000Base-X SFP port. This TS-M316G-2SFP 16 ports WEB Smart Gigabit Switches fill the gap between unmanaged and fully managed switches. It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation.

Enterprise Gigabit PoE Switch Ordering Information

Model	Description
TS-M316G-2SFP	L2+ 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
