E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Managed 8-Port PoE Switch | Built-in Power: | AC 100~240V 50/60Hz |
|---|---|---|---|
| PoE Standard: | 802.3af/at 30W | Fiber Port: | 2x100/1000Base-FX SFP |
| Dimensions: | 280mm X 180mm X 44.5mm | Installation Mode: | Rack Mounting |
| High Light: | L2 Managed Fiber Switch,8 RJ45 Managed Fiber Switch,Managed 8 Port PoE Switch |
||

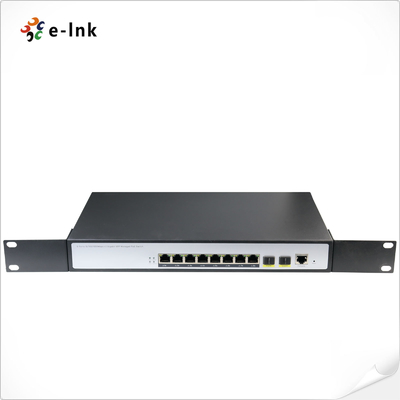

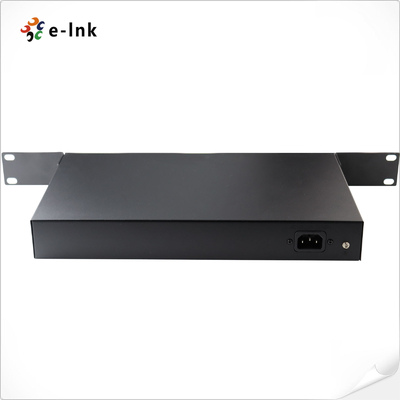

Commercial L2 Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X Fiber Switch
Commercial PoE Switch Advantages
►8-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
►2-Port 100/1000BASE-X mini-GBIC/SFP
►RJ45 console interface for basic management and setup
►Web smart management for easy application
L2 Managed 8-Port Ethernet Switch Technical Indexes
| RJ45 port and speed | 8x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Packet buffer | 4Mbits |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 20Gbps |
| PoE Standard | 8x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 250W |
| Protection grade | IP30 |
| Dimensions | 280mm x 180mm x 44.5mm (L x W x H) |
| Installation mode | Rack Mounting |
| Weight | 2000g |
| MTBF | 200,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |
8RJ45 To 2SFP PoE Power Switch Overview
TS-M308GP-2SFP Layer 2 Managed Gigabit Switch provides 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 250 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
Enterprise Gigabit PoE Switch Ordering Information
| Model | Description |
| TS-M308GP-2SFP | L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch, total power budget of up to 250 watts |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
