MEAN WELL 75W 1.6A 48V Din Rail Power Supply For Ethernet Switch

Name: MEAN WELL 75W 1.6A 48V Din Rail Power Supply For Ethernet Switch
Brand: E-link
SKU: EDR-75-48
Rating: 5 (163 reviews)

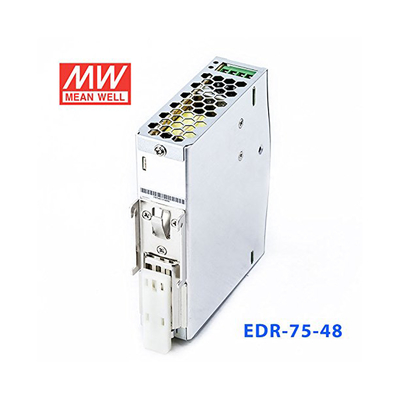

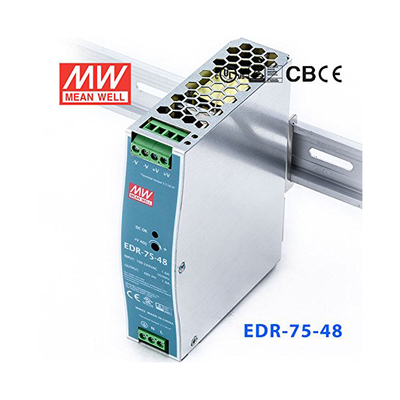

Large Image : MEAN WELL 75W 1.6A 48V Din Rail Power Supply For Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	EDR-75-48

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Power Supply Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Industrial Power Supply Adapter	Mounting Type:	-20~+60 Degrees C
Input Voltage:	100-240V AC 50/60Hz	Power Output:	76.8 Watts 48V
Dimensions:	32 X 125.2 X 102 Mm
Highlight:	MEAN WELL Din Rail Power Supply , Switch 48V Din Rail Power Supply , 75W Din Rail Power Supply

MEAN WELL 75W 48V 1.6A Industrial DINRAIL Power Supply For Ethernet Switch

75W 48V Power Supply Advantages

► Protection features: short circuit, overload, over voltage and over temperature

► Cooling by free air convection

► Can be installed on DIN rail TS-35/7.5 or 15 installation

► UL 508 (industrial control equipment) approved

► EN61000-6-2 (EN50082-2) industrial immunity level

DIN RAIL Power Supply Adapter Technical Indexes

Configuration	Enclosed
Dimensions (W x H x D)	32 x 125.2 x 102 mm
Weight (kg)	0.51kg
Mounting Type	DIN-Rail Mount
Input Voltage	100-240V AC,50/60Hz, 1.45A
Power Output	76.8 Watts, 48V, 1.6A
Primary Type	AC-DC
Series	EDR Series
Type	Industrial
Temperature	Operating:-20~+60 degrees C Storage:-40~+85 degrees C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	Ul508, TUV EN60950-1 approved (meeting EN60204-1)
Special Features	*2 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection
