4 Port USB 2.0 Fiber UTP Extender 6KM Via Single Mode Fiber Cable

Name: 4 Port USB 2.0 Fiber UTP Extender 6KM Via Single Mode Fiber Cable
Brand: E-link
SKU: LNK-U4TF1-2.0
Rating: 4.5 (142 reviews)

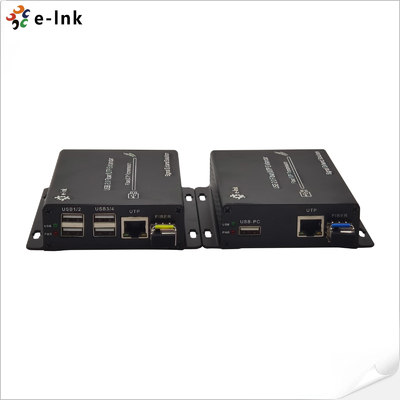

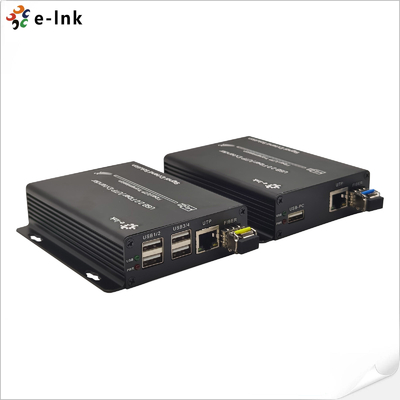

Large Image : 4 Port USB 2.0 Fiber UTP Extender 6KM Via Single Mode Fiber Cable

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-U4TF1-2.0

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	USB Fiber Extender Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	USB 2.0 Fiber/UTP Optic Extender	Fiber Cable:	Up To 6KM
Cat6 Cable:	Up To 170m	Connector:	Simplex LC
Input/Output:	USB2.0 Type-A Female	Case:	Aluminum
Highlight:	USB 2.0 Fiber UTP Extender , Aluminum Case Fiber UTP Extender , UTP Video Extender 6KM

4-Port USB 2.0 Over Fiber/UTP Extender 6KM Via Single Mode Fiber Cable

USB 2.0 Over Fiber/UTP Extender Advantages

► Support USB-HUB expansion, support all kinds of USB devices;

► No Drivers Required, compatible with all operating systems;

► Cat5 network cable 100 meter, Cat6 network cable 170 meters;

► Support optical fiber extension of 6km, of which USB non-real-time transmission can reach more than 10km;

► Support 2 groups of I/O synchronous extension control, which can realize remote switch and restart

4-Port USB Converter Technical Indexes

Optical	Connector	Simplex LC
	Wave length	1310nm/1550nm
	Max. Distance	6KM
USB2.0	Input/Output	USB2.0 Type-A Female
Physical	Size (L× W ×H)	117mm x104mm x28mm
	Case	Aluminum
	Color	Black
	N.W.	0.75Kg
Power	Voltage	5V DC
Power	Power consumption	<5W
Environment	Working temperature	-20℃~70℃
	Storage temperature	-40~85℃
	Humidity	0-95% (non-condensing)

Fiber Optical Transceiver Overview

E-link 4 Port USB 2.0 Fiber/UTP Optic Extender support both Fiber and UTP cable transmission. This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The use of optical fiber cable can extend the distance up to 6KM. The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

1 USB for Local Unit and 4 USB for Remote Unit Ordering Information

Model	Description
LNK-U4TF1-2.0	4-port USB 2.0 Fiber/UTP extender, 1 USB for Local Unit, 4 USB for Remote Unit, up to 6KM via Single Mode fiber cable, up to 170m via Cat6 cable
