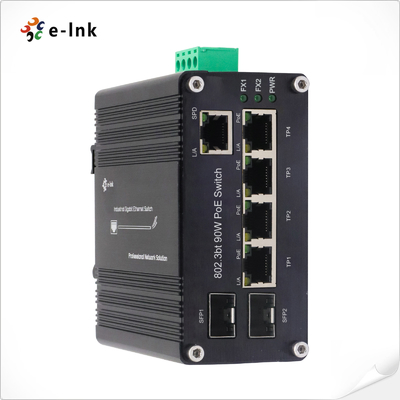

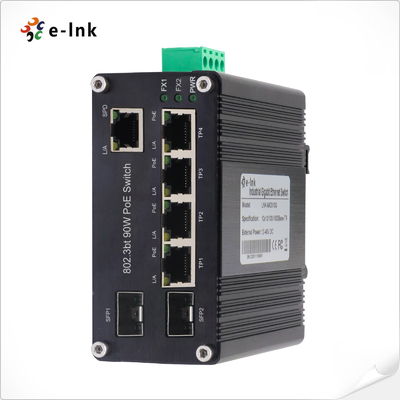

Industrial PoE Powered 5-Port 10 100 1000T + 2-Port 100 1000X SFP Gigabit Ethernet Switch
Industrial Din Rail PoE Powered Switch Advantages
► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input
► Four PSE PoE ports, PoE Power Budget up to 71 Watt
► Two 100/1000BASE-X SFP slots for SFP type auto detection
► POE extender: No AC adapter is required, powered by PoE switch or PoE injector
► Expand and repeat your PoE network for up to 4 IP devices
5-port Gigabit Ethernet Switch with PoE Passthrough Overview
E-link LNK-IMC205GPD-SFP Series is a Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough. It’s with one IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, four PSE PoE ports, PoE Power Budget up to 71 W, IEEE 802.3af/at/bt Compliant Output. LNK-IMC205GPD-SFP PoE Pass-through switch is integrated with both Powered Device (PD) and Power Source Equipment (PSE) in one which can receive power and data from another PoE device and pass through. This switch is designed to supply the PoE to IP devices deployed in the field where the power source is difficult to acquire. Single Ethernet cable is capable of providing 71-Watt total power budget and the pass through switch expand up to 4 network ports with PoE.
1-Port PoE In to 4-Port PoE Out Fiber Switch Technical Indexes
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 71-watt PoE budget |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Input Power: |
Pass through PoE: |
| 48~57VDC (Terminal Block) | |
| Power Consumption: | <5W (Non-PoE) |
| Dimensions (LxWxH): | 95 x 88 x 46mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| FX1/FX2: | SFP Fiber Link Status |
90W 802.3bt PoE Powered Switch Ordering Information
| Model | Description |
| LNK-IMC205GPD-SFP | Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► PoE Pass Through |
| ► Power Supply is to be purchased separately |
