| Keywords: | HDMI USB Fiber Optic Extender | Video Support: | 4K 30Hz, 1080P 60Hz |
|---|---|---|---|
| Power Input: | 5VDC USB | Fiber Port: | Simplex LC Connector |
| Cable: | OM3 Multi-mode Fiber | Transmission Distance: | 300M |
| High Light: | 300 Meters HDMI over Fiber Extender,30HZ HDMI Over Fiber Extender,OEM HDMI Over Fiber Optic Extender |
||
OEM Mini 4K 30HZ HDMI over Single Core Multimode Fiber Extender LC 300 Meters
HDMI Fiber Converter Advantages
►Uses Small, Reliable LC Optical Connector
►Double Power Supply (HDMI 5V&USB)
►Integrated USB Connector for Power
►DDC CEC HPD Signal Support
4K HDMI USB Extender Resolution
| Chroma Subsampling | 4K Resolution | 1080P Resolution |
| 4:4:4 | 4K@30Hz | 1080P@60Hz |
| 4:2:2 | 4K@30Hz | 1080P@60Hz |
| 4:2:0 | 4K@60Hz | 1080P@60Hz |
Fiber Optic Extender Technical Indexes
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K@30Hz (Y:U:V 4:4:4) |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | 1 x LC Connector |
| Transmission Distance | Multi Mode, up to 984ft (300M) |
| Operating Temperature | 0°C to + 50°C |
| Storage Temperature | -20°C to + 85°C |

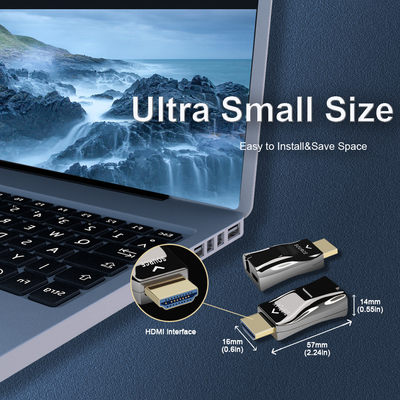

| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Fiber Optical Transmitter Receiver Overview

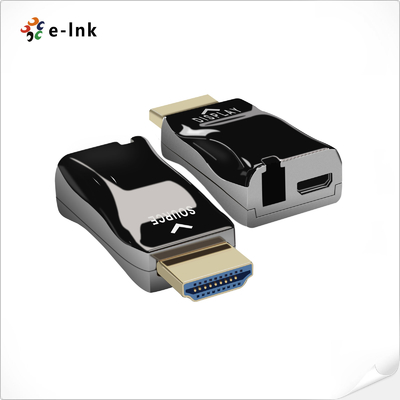

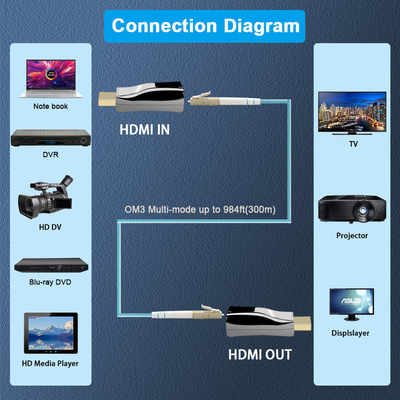

The LNK-107M is a mini 4K/30Hz HDMI over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
Micro 4K HDMI over Fiber Transceiver Ordering Information
| Model | Description |
| LNK-107M | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
