Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type C Power Input

Name: Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type C Power Input
Brand: E-link
SKU: LNK-MHRA4K
Rating: 4.5 (173 reviews)

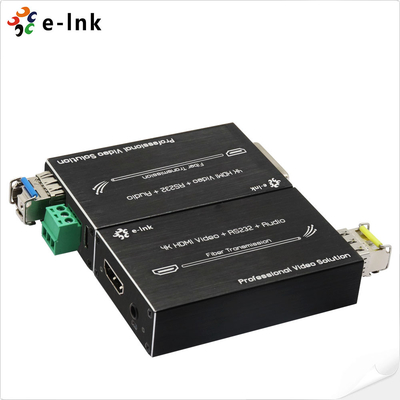

Large Image : Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type C Power Input

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-MHRA4K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Fiber Optic Converter standard export package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	HDMI Fiber Optic Extender	Video Support:	4Kx2K 30Hz
Fiber Connector:	SFP / LC	RS232 Baud Rate:	38400
Transmission Distance:	Up To 80km	Casing:	IP40 Aluminum Shell
High Light:	RS232 4K HDMI Fiber Extender , External Audio 4K HDMI Fiber Extender , HDMI Fiber Optic Extender 5VDC

Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type-C Power Input

HDMI Video Fiber Converter Advantages

►HDMI 1.4a and HDCP1.2 Support
►Transmission distance up to 80km over fiber cable
►Support external stereo audio
►Support Serial RS232 Signal
►Miniature form factor for ease of use and installation

Audio Fiber Optic Converter Max Resolution Support

Chroma subsampling	4:4:4	4:2:2	4:2:0
HDMI	4K@30Hz	4K@30Hz	4K@60Hz
DVI	4K@30Hz	4K@30Hz	4K@60Hz

HDMI Extender with RS232 Technical Indexes

Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 50°C
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC, USB Typ-C

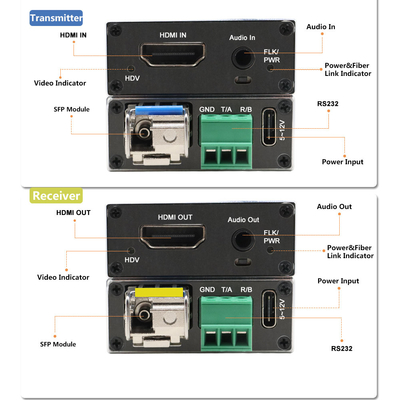

Fiber Optical Transmitter Receiver Overview

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type C Power Input 0

Mini 4K HDMI Fiber Extender With RS232 And External Audio 5VDC Type C Power Input 1

Micro HDMI over Audio Transceiver Ordering Information

Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
