E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial Ethernet Switch 4 Port | Input Power: | 12~58VDC |
|---|---|---|---|
| Ethernet Port: | 4 Ports 10/100BASE-T RJ45 | Fiber Port: | 2 Ports 100Base-FX SC |
| Casing: | IP40 Aluminum Case | Operating Temperature: | -40°C To 80°C |
| High Light: | IP40 Din Rail Ethernet Switch,58VDC Din Rail Ethernet Switch,Industrial Ethernet POE Switch Din Rail |
||

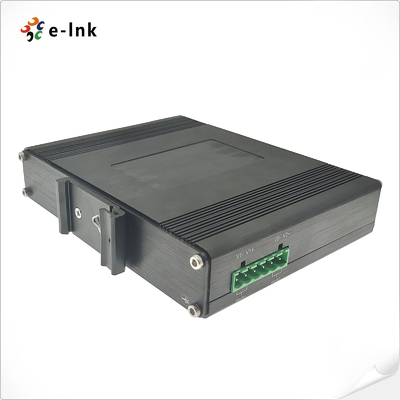

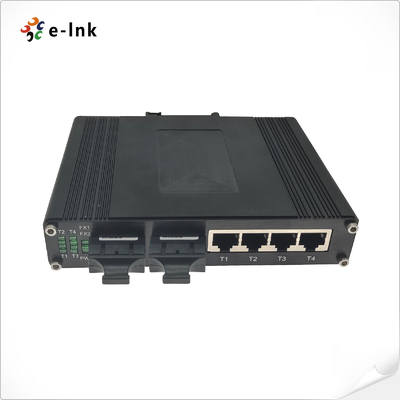

Industrial 4-Port 10 100Base-T + 2-Port 100BASE-FX Fiber Din Rail Ethernet Switch
Industrial Fiber Ethernet Switch Advantages
► 4 10/100Base-TX + 2 100Base-FX
► Redundant Power Inputs
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports Wall-mount and DIN-Rail installation
8 Ports Ethernet Switch Technical Indexes
Standards: | IEEE802.1 10Base-T, IEEE802.3u 100Base-TX |
IEEE802.3 100Base-FX | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
IEEE802.3X Flow Control | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
Packet Buffer Memory: | 512K bits |
Processing Type: | Store-and-Forward |
Address Table Size: | 1024 MAC Addresses |
Connector: | 4 x RJ45 |
Optical Port: | 2 x 100Base-X (SFP, SC, FC, ST Optional) |
Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
Power Consumption: | 5W Max. |
Protection: | |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
Unmanaged Fiber Network Switch Overview
LNK-IMC204 is a 4 ports 10/100Base-TX + 2 port 100Base-FX Industrial Ethernet switch. The Switch has 4 TP ports and 2 fiber ports. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Copper to Fiber Ethernet Switch Ordering Information
Model | Description |
LNK-IMC204 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
LNK-IMC204-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
LNK-IMC204S-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
LNK-IMC204F-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
LNK-IMC204-SFP | Industrial 4-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |
