Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial Ethernet Switch 8 Port | Input Power: | 12~58VDC Redundant Power |
|---|---|---|---|
| Ethernet Port: | 8 Ports 10/100BASE-T RJ45 | Fiber Port: | 2 Ports 100Base-FX SC |
| Casing: | Aluminum Case | Operating Temperature: | -40°C To 80°C |
| High Light: | FCC Ethernet POE Switch,Aluminum Case Ethernet POE Switch,Din Rail Fiber Ethernet Switch |
||

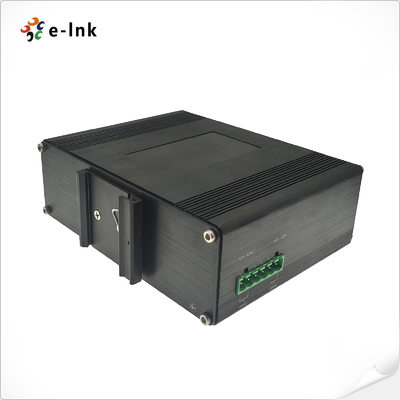

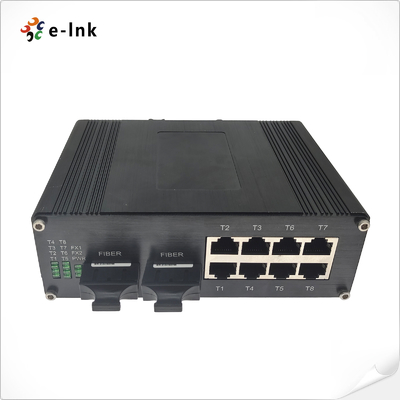

Din Rail Industrial 8 Ports 10 100Base-T + 2 Ports 100BASE-FX Fiber Ethernet Switch
Industrial Fiber Ethernet Switch Advantages
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
8 Ports Ethernet Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Flow Control |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
Packet Buffer Memory: |
512K bits |
|
Processing Type: |
Store-and-Forward |
|
Address Table Size: |
1024 MAC Addresses |
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 110 x50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Unmanaged Network Switch Overview
LNK-IMC208 Series is an 8 ports 10/100Base-TX + 8 port 100Base-FX Hardened Ethernet switch. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Copper to Fiber Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC208 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
|
LNK-IMC208-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208S-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208F-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208-SFP |
Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
