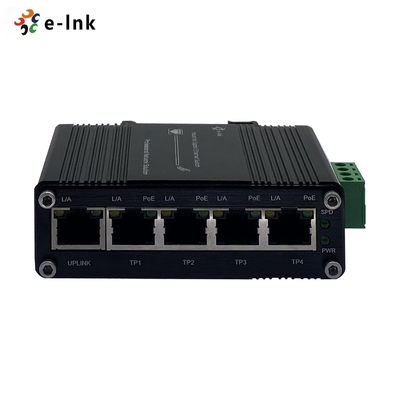

Mini Industrial Ethernet Switch 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink
Industrial Din Rail PoE Switch Advantages
► 12~48VDC wide range power input
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

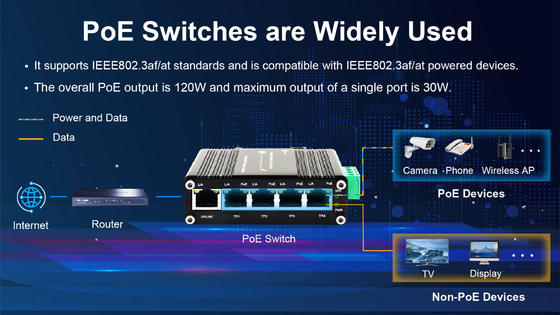

► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Gigabit Power Over Ethernet Switch Technical Indexes
Standards: | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3ab Gigabit Ethernet | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
IEEE 802.3at Power over Ethernet Plus PSE | |
IEEE 802.3af Power over Ethernet Plus | |
Switch Fabric: | 10Gbps/non-blocking |
Exchange Property | Backplane bandwidth: 20Gbps; |
Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Input Power: | 12~48VDC (Terminal Block) |
Power Consumption: | <125W (Non-PoE<6W) |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |

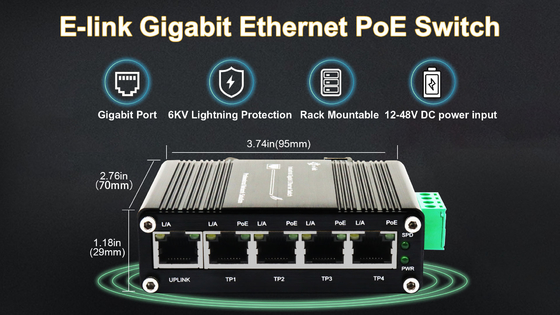

Dimensions (WxDxH): | 95 x 70x 29mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Unmanaged Network Switch Overview
LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
Ordering Information
Model | Description |
LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► Power Supply is to be purchased separately |
