E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Power Over Ethernet Injector Hub | Feature: | Power Booster Function |
|---|---|---|---|
| PoE Standard: | IEEE802.3af/at | Power: | 60W Max Per Port |
| Connector: | 2x RJ45 | Input Power: | 12~48VDC |
| Highlight: | Gigabit High PoE Injector,Power booster Power Ethernet Injector,48VDC Power Ethernet Injector |
||

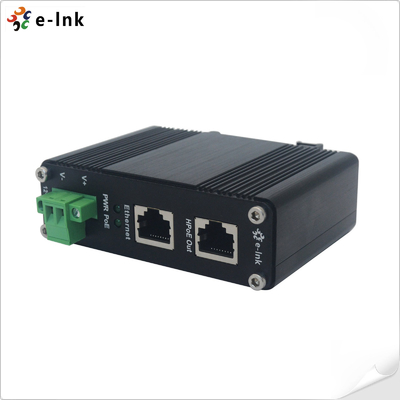

Din Rail Industrial Gigabit High PoE 60W 802.3at Power Ethernet Injector 12~48VDC
Power Over Ethernet Injector Advantages
► 12~48VDC wide range power input with power booster function
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support PoE for Hi-PoE 60W high power consumption speed dome
► Support IEEE802.3af/at Power over Ethernet (PoE+) Power Sourcing Equipment
PoE Adapter Technical Indexes
Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) |
| Max. Power per Port: | 60W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview
The LNK-INJ601 product is a Hardened Gigabit Hi-PoE 60W Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. It also supports PoE for Hi-PoE 60W high power consumption speed dome
Ordering Information
Model | Description |
LNK-INJ601 | 12~48VDC Power Input Industrial Gigabit Hi-PoE 60W Injector |

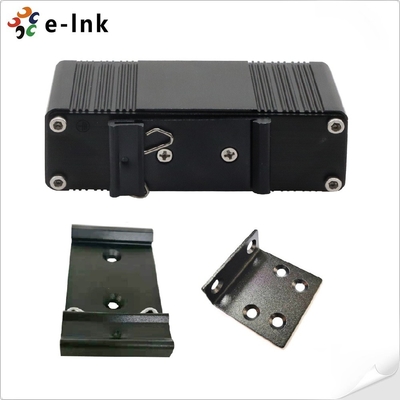

Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► Power Supply is to be purchased separately |
