Product Details:
Payment & Shipping Terms:
|
| Keywords: | Ethernet Switch Powered By Poe | Input Voltage: | AC100 ~ 240V |
|---|---|---|---|
| PoE Port: | 4-port RJ45 802.3af | Optical Port: | 1-port Gigabit SFP |
| Power: | 48V | Operation Temperature: | 0℃~50℃ |
| High Light: | Fiber To Copper Web Managed Ethernet Switch,48V Power Over Ethernet Switch,FCC Web Managed Ethernet Switch |
||

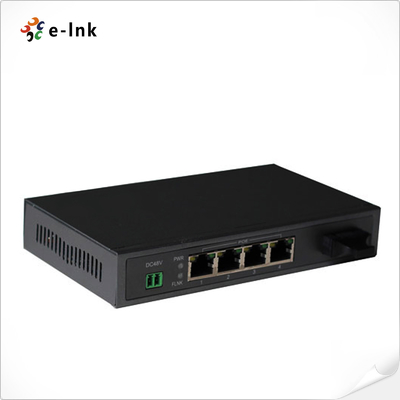

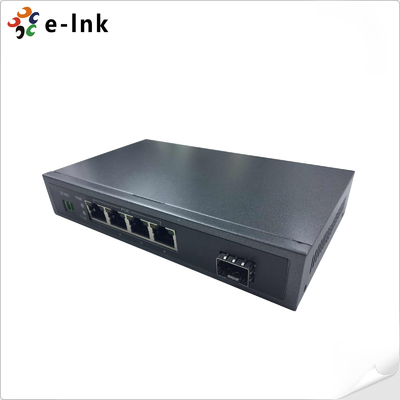

PoE Switch 10/100/1000M Gigabit Fiber To Copper Web-Managed Ethernet Switch
Power Over Ethernet Switch Advantages
► 1 x 1000Base-FX or SX fiber port
► 4 x 10/100/1000Base-TX port for data and power
► Diagnostic and unit LEDs and PoE current indicator LEDs
► Support Mac-based, port-based VLAN
► 9 KB jumbo frame; wire speed for all fame sizes
► Storm control and port-based ingress/egress rate control
Managed PoE Switch Technical Indexes
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 50/125um, 62.5/125um MMF (5km), 9/125um SMF (25/40/60/80/100/120km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | 4 x Auto-MDI/MDIX |
| Optical Port | 1 x SFP 1000BASE-FX |
| Input Voltage | AC100 ~ 240V / 50-60HZ to 48V via external adapter |
| Power Consumption | <2.5W (idle), 60W (full-load) |
| PoE Pin Assignment | 4/5 (V+),7/8 (V-) |
| PoE Output Voltage | 48V |
| MTBF | 50,000 hours |
Overview
LNK-M1400GP-SFP Series 10/100/1000 Mbps copper to fiber web-managed switch provides IEEE 802.3af Power Sourcing Ethernet (PSE) functionality on the 4 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras.
Ordering Information
| Model | Description |
| LNK-M1400G-SFP | Managed 10/100/1000Mbps Fiber to Copper Ethernet Switch: 1 SFP + 4 RJ45, not including SFP Modules; External Power Adapter |
| LNK-M1400GP-SFP | Managed 10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE, not including SFP Modules; DC48V, IEEE802.3af, PoE Power: 15.4W per PoE port, External Power Adapter, support Web Management |
