Ethernet Switch Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Switch
SFP Ethernet Switch Advantages
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Packet Buffer Memory: |
4 Mbit |
|
Switch Fabric: |
12Gbps |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Connector: |
3 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Ethernet LINK Status |
|
FX: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Overview

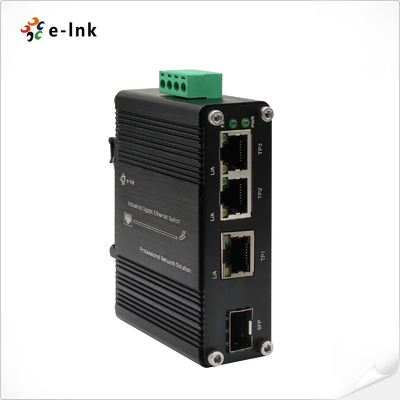

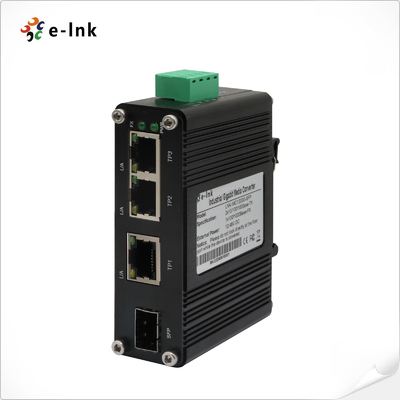

LNK-IMC103G-SFP Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP40-rated rugged but compact-size case. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
|
Model |
Description |
|
LNK-IMC103G-SFP |
Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |

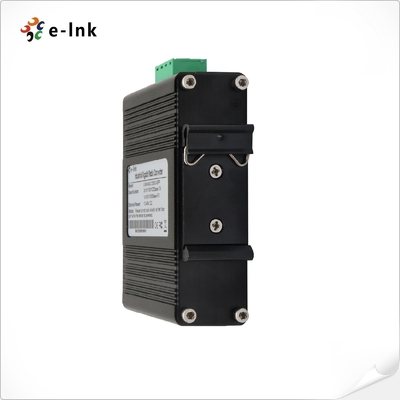

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
