Product Details:
Payment & Shipping Terms:
|
| Keywords: | 4 Ports Gigabit Ethernet Switch | Connector: | 4 X RJ45 |
|---|---|---|---|
| Optical Port: | 2 X 1000Base-FX (SFP, SC, FC, ST Optional) | Input Power: | 12~58VDC |
| Casing: | Metal Case | Dimensions: | 150 X 110 X 22 Mm |
| High Light: | Hardened 4 port gigabit ethernet switch,Metal 4 port gigabit ethernet switch,9K Bytes 4 port Hardened Ethernet switch |
||

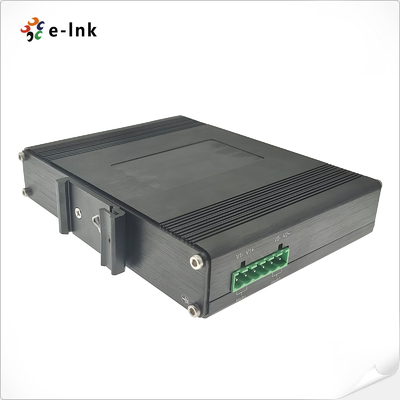

Ethernet Switch 4-Port 10/100/1000Base-T + 2-Port 1000BASE-FX SC Network Switch
4-Port Network Switch Advantages
► Supports 802.3x Flow control
► 1M bits frame buffer memory
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Technical indexes
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |
12~58VDC , Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet(Per Port): |
Link/Activity |
|
Fiber Port: |
FX1, FX2 |
Overview
LNK-IMC204G is a 4 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened Ethernet switch. The Switch has 4 TP ports and 2 fiber ports. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
|
Model |
Description |
|
LNK-IMC204G
|
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
|
|
LNK-IMC204G-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC204GS-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC204GF-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC204G-SFP |
Industrial 4-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
|
Mounting Options |
Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block |
|
Power Supply is to be purchased separately. |
