Product Details:
Payment & Shipping Terms:
|
| Product Name: | Solar Powered Mini Industrial 4GE+1SFP Ethernet Switch | Connector:: | 4 X RJ45 |
|---|---|---|---|
| Optical Port:: | 1 X SFP 1000Base-X Or 100Base-FX (auto Detection) | Operating Temperature:: | -40°C To 80°C (-40°F To 176°F) |
| Input Power:: | 12~48VDC (Terminal Block) | Weight:: | 0.25Kg |
| Casing:: | Aluminum Case | Mounting Options:: | DIN-Rail / Wall-mount |
| High Light: | 1000X SFP Gigabit Ethernet Switch,Aluminum SFP Gigabit Ethernet Switch,48VDC Industrial Fiber Media Converter |
||
Overview

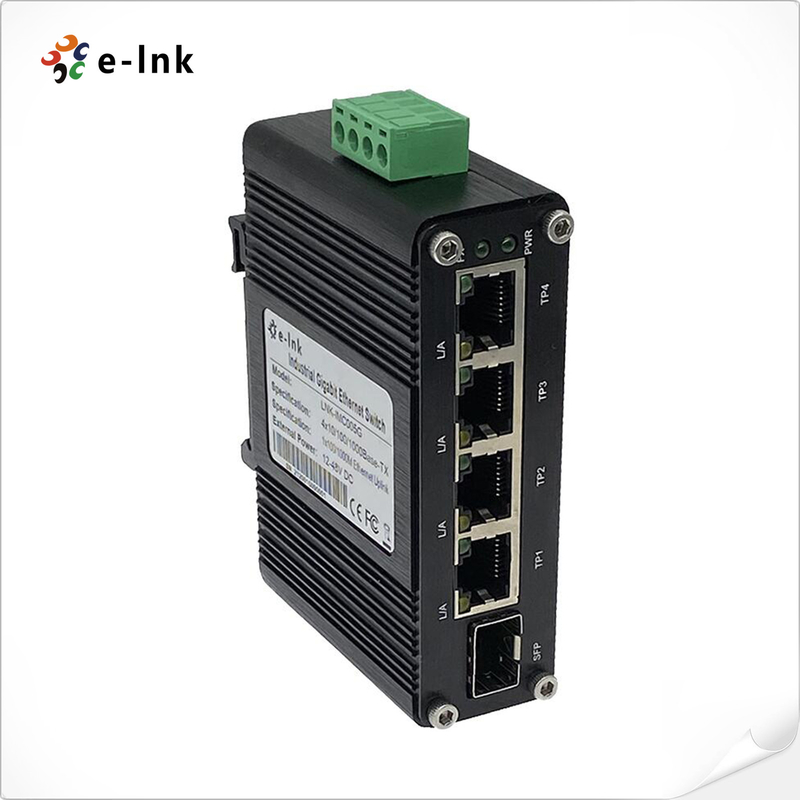

LNK-IMC104G-SFP Series is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 20Gbps; |

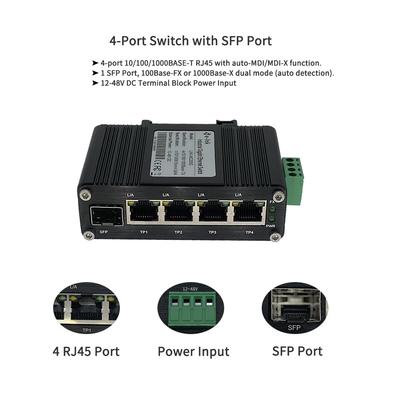

| Connector: | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |

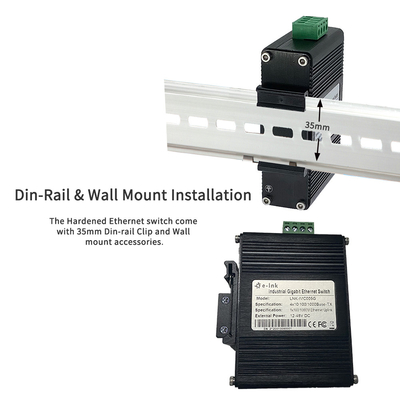

| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| SPD | Data Rate |
