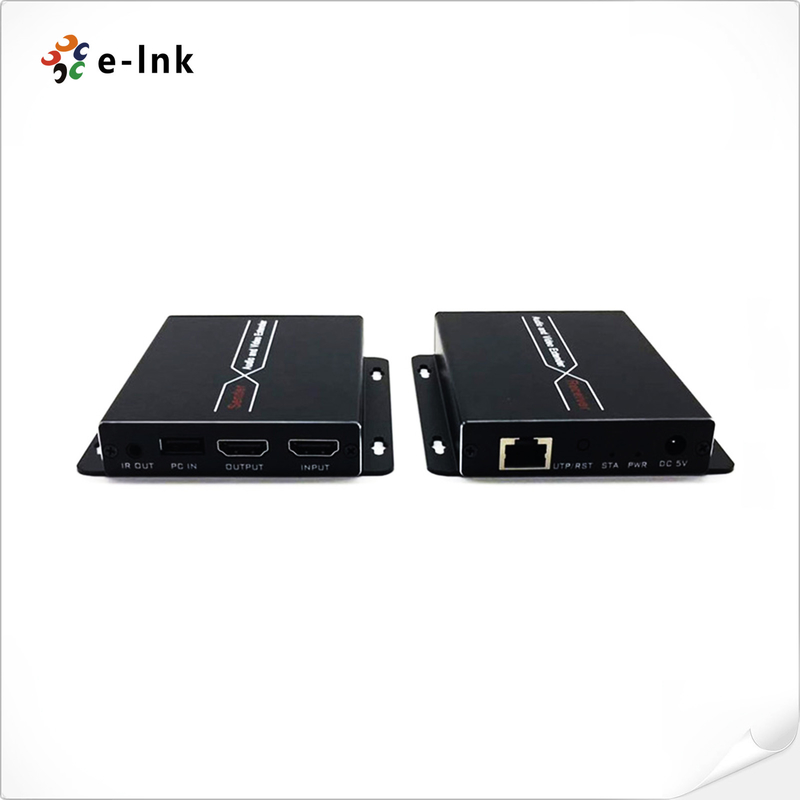

KVM Fiber Optic Hdmi Extender TCP IP CAT5E/6 Cable 1080P 60Hz

KVM Fiber Optic Hdmi Extender TCP IP CAT5E/6 Cable 1080P 60Hz
KVM Fiber Optic Hdmi Extender TCP IP CAT5E/6 Cable 1080P 60Hz

Large Image :  KVM Fiber Optic Hdmi Extender TCP IP CAT5E/6 Cable 1080P 60Hz

Product Details:
Place of Origin: Guangdong
Brand Name: E-link
Certification: ISO
Model Number: LNK-HDE-120KVM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: please contact seller
Packaging Details: Standard export package
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 10000
Detailed Product Description
Standards: HDMI 1.3; HDCP 1.2 Pixel Clock: 165MHz
Data Rate: 6.75Gbps Resolution: 1920X1080@60Hz
Power Supply: DC 5V Dimension: 100*97.5*17mm
High Light:

KVM Fiber Optic Hdmi Extender

,

TCP IP Fiber Optic Hdmi Extender

,

CAT5E Cable HDMI Fiber Extender

120 Meter Extend Distance 1080P 60Hz HDMI KVM Extender Over TCP/IP CAT5E/6 cable



Features

  • Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.
  • Distance up to 120m over UTP CAT5E/6 cable.
  • Video resolution max up to 1920*1080@60Hz.
  • Support keyboard and mouse control .
  • Have a local HDMI loop-out ;
  • Support IR(38khz) signal pass back transmission .
  • HDMI 1.3 and HDCP 1.2 standard.
  • High compatibility, can auto-match source and display device.
  • Built-in automatic adjustment system, make the image smooth, clear and stable.
  • Built-in ESD protection system; Simple to install, plug and play.
  • TCP/IP Ethernet communication.
  • Real-Time Video/Audio Transmission over IP.
  • Pure Ethernet , Simple Cabling .
  • Ordinary 100M or 1000M Ethernet switch.





Technical Indexes

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution Max: 1920X1080@60Hz(backward-compatible)
Connector HDMI-A
Impedance 100Ω
IR Interface 3.5mm earphone seat
Signal direction Unidirectional
Signal type Digital
IR frequency 38kHz
USB Interface

PC: Standard MINI-USB or PS2

K/M: Standard USB, PS2 (optional)

USB Signal HID Signal
Ethernet Interface RJ45(568B)
Transmission distance UTP CAT5e/---120m
Other Power supply The power adapter: DC 5V
Power dissipation MAX 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 100*97.5*17mm
The warranty 1 year free warranty









Ordering Information

Part No Description of product
LNK-HDE-120KVM 120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
