4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout

China E-link China Technology Co., Ltd. certification
China E-link China Technology Co., Ltd. certification
The engineer solved our problem very quick, and the service is very good. Very professional factory.

—— Robert Lichtenstein-Canada

I had no concern, was buying and testing, so equipment is ok. So equipment and logistic is ok, we keep ordering and making business.

—— Anek – Thailand

I'm very satisfied with the media converter received, the OEM order quality is good.

—— Faize Akçaba-Turkey

E-link Sales are very professional, they give me not only product, but also solution. All E-link Fiber Media Converters and PoE Switches works well.

—— Patrícia Maia-Brazil

I'm Online Chat Now

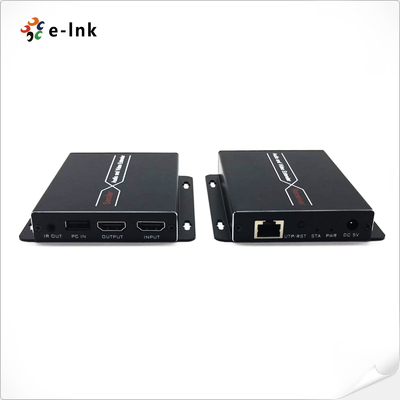

4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout

4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout
4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout 4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout 4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout

Large Image :  4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout

Product Details:
Place of Origin: Guangdong
Brand Name: E-link
Certification: ISO
Model Number: LNK-4KE-120KVM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: please contact seller
Packaging Details: Standard export package
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 10000
Detailed Product Description
Video Standards: HDMI1.4; HDCP 1.4 Maximum Pixel Clock: 225MHz
Maximum Data Rate: 10.2Gbps Maximum Resolution: 3840*2160@30Hz (backward-compatible)
Power Adapter:: DC5V Power Dissipation: MAX 4W
High Light:

KVM HDMI Over Fiber Optic Extender

,

DC5V Over Fiber Optic Extender

,

Loopout Audio Over Fiber Extender

4K 30HZ HDMI KVM Extender CAT6/6A/7 Network Cable 120 Meter with Loopout



Features

4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout 0



4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout 1







Technical Indexes

Parameter Description
Video Standards HDMI1.4; HDCP 1.4
Maximum pixel clock 225MHz
Maximum data rate 10.2Gbps
Maximum resolution 3840*2160@30Hz (backward-compatible)
Connector HDMI-A
Impedance 100Ω
USB Interface

PC: Standard USB-A

K/M: Standard USB-A

USB Signal HID Signal
UTP Interface RJ45 (IEEE - 568b connection)
Transmission distance CAT6-120M
Other Power supply The power adapter: DC 5V
Power dissipation MAX 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 82*85*17mm
The warranty 1 year free warranty






Ordering Information

Part No Description of product
LNK-4KE-120KVM 4K@30HZ HDMI KVM Extender With Loopout - 395 ft (120m)
