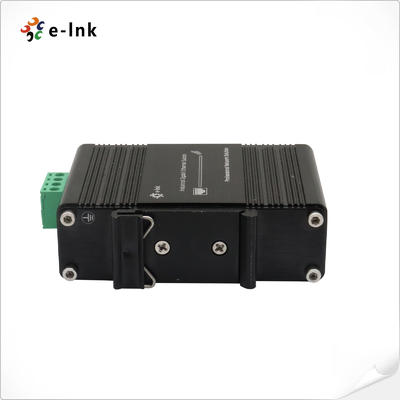

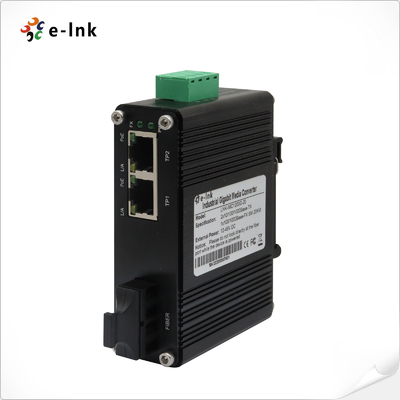

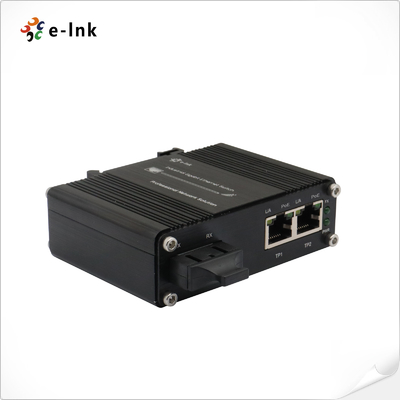

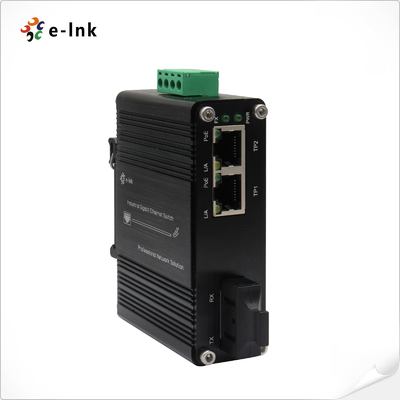

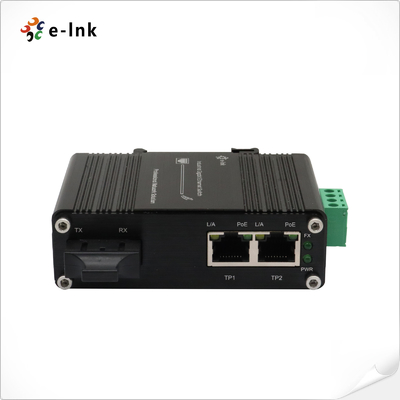

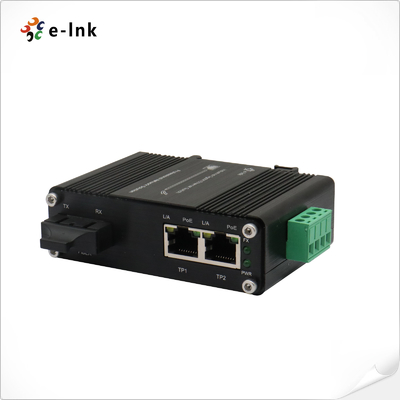

185W PD Plug PoE Media Converter 2 Port 10 100 1000Base-T Auto MDI

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

185W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
